5.16 Steam Valve and Steam Valve Switch (S79) – Removal
Refer to Figure 5-15.
1. Open the door.
2. Remove the Rear Door Panel and Fascia Panel Cover
(5.10 & 5.11).
3. Pull off the Switch Knob (8).
4. Remove the holder fixing screws (3).
5. Remove the holder.
6. Remove the Steam Valve Switch screws (10).
7. Remove the Steam Valve Switch.
8. Disconnect the electrical connections.

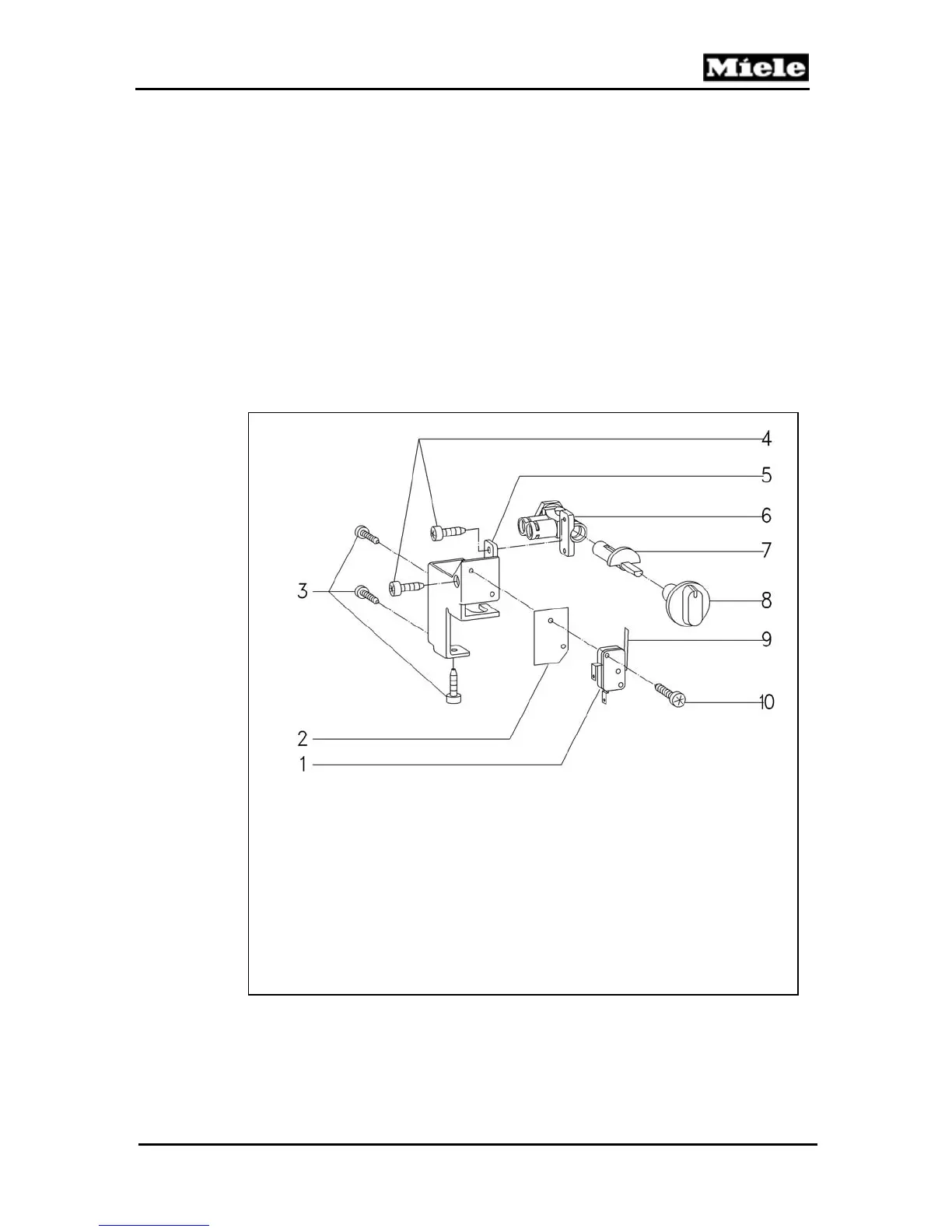

Figure 5-15: Components of Steam Valve and Steam Valve Switch
1 - Switch - Steam generator (S79)
2 - Underlay
3 - Screws - Holder
4 - Screws - Valve housing
5 - Holder
6 - Valve housing - Steam
7 - Valve insert - Steam
8 - Switch knob
9 - Switch feeler
10 - Fixing screw - Switch
