Miele CVA615 - Selector Switch - Removal

Technical Information
51
CVA615 Coffee System
5.12 Selector Switch - Removal
Refer to figure 5-14.
1. Open the door.
2. Remove the Rear Door Panel and Fascia Panel Cover
(5.10 & 5.11).
3. Unplug the electrical connection from the Selector Switch,
4. Remove the Switch Knob (9).
5. Remove the Selector Switch with its housing from the Fascia.
6. Remove the Selector Switch Fixing Screws.
7. Remove the Selector Switch from its Housing.

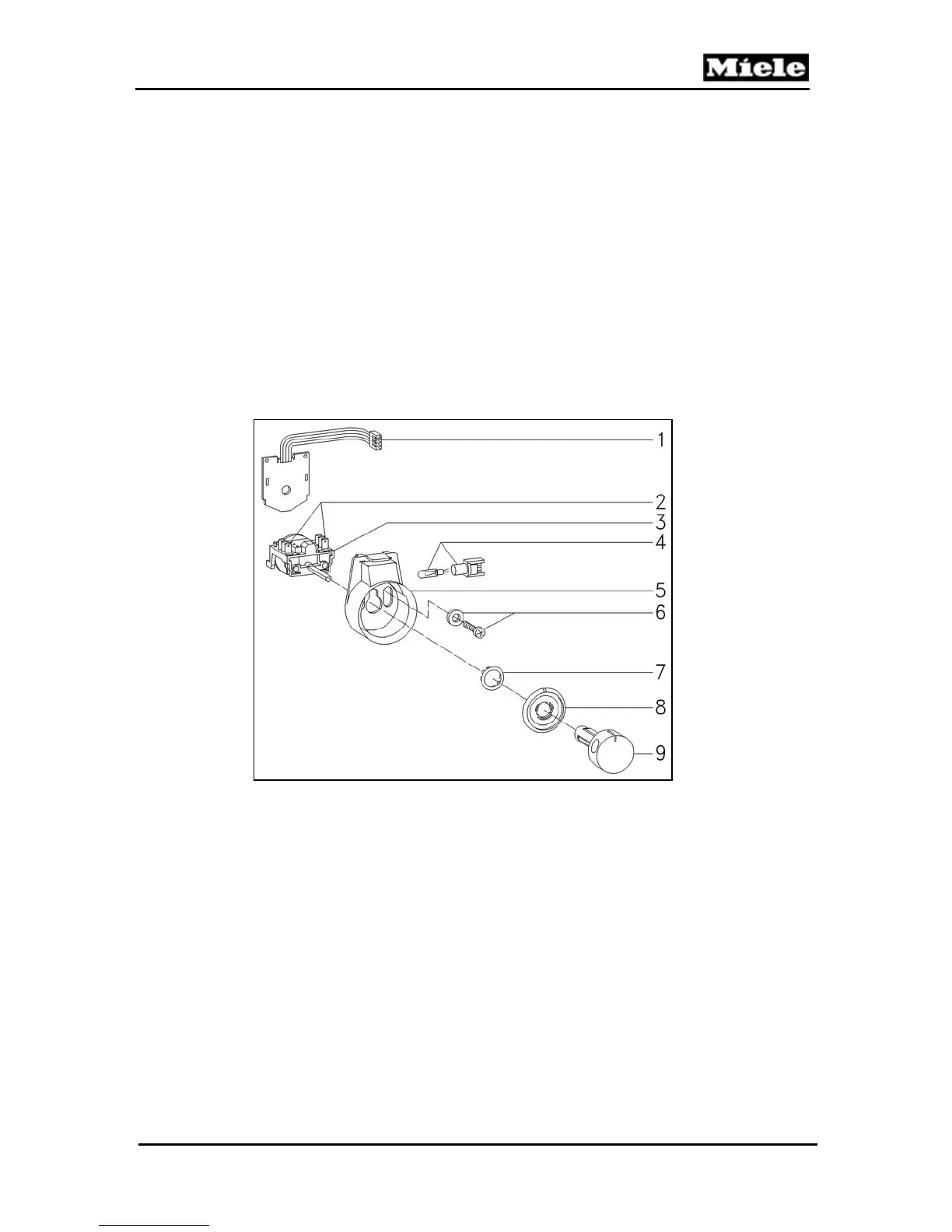

Figure 5-12: Selector Switch
