Miele CVA615 - Water Tank

Technical Information
22
CVA615 Coffee System
4.9 Water Tank
Refer to figure 4-9.
The Water Tank holds the water required for the brewing of the
coffee, hot water and steam. When the Water Tank is installed, the
sealing ring is pressed upwards allowing water to flow out.

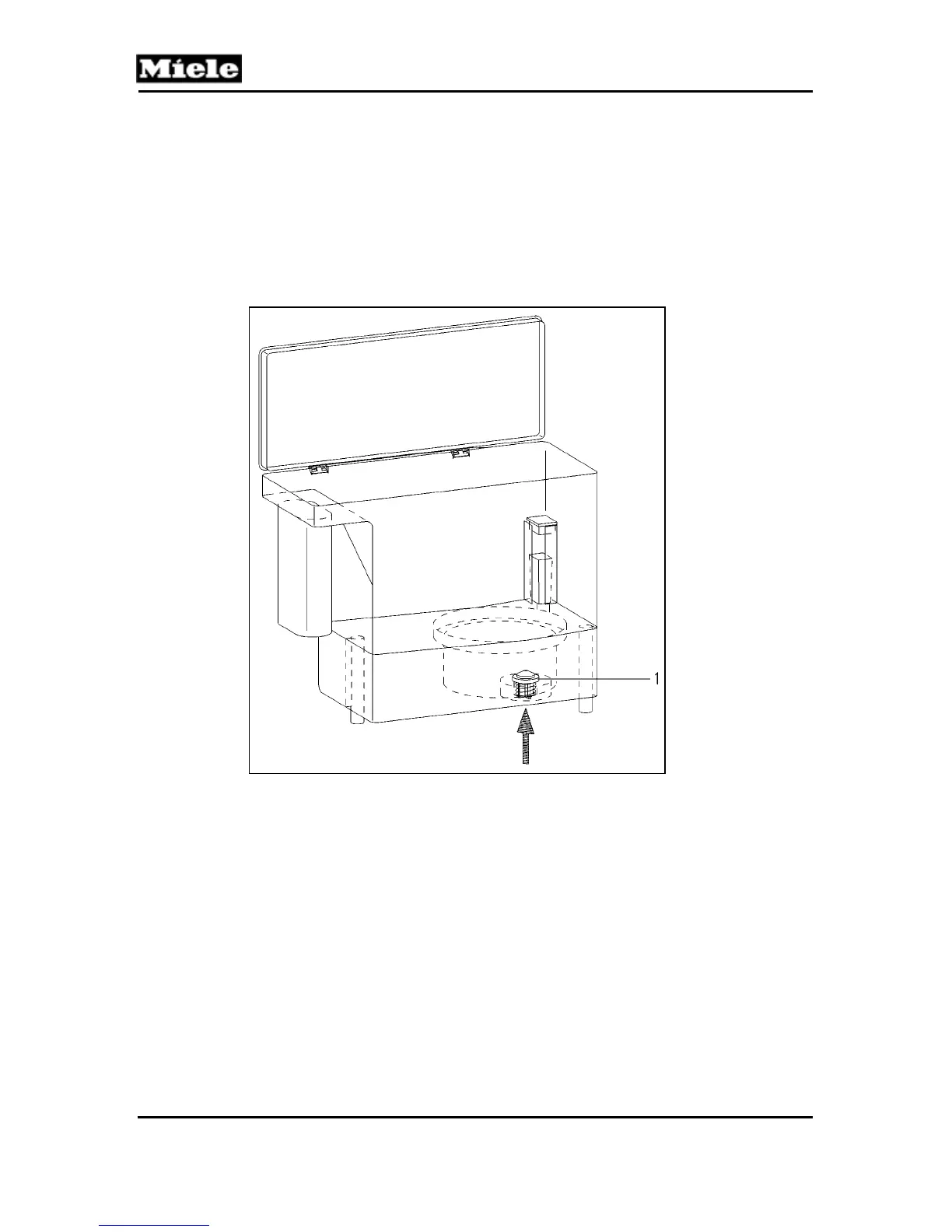

Figure 4-9: Water Tank (1) Valve Assembly.
When the tank is removed from the unit, the spring closes the
sealing ring to ensure water cannot flow from the tank when it is out
of the appliance for filling etc…
