The actuating magnet (Figure 4-8, Item 1) for the Waste Unit switch
is fitted in the bottom edge of the container. The electronic
monitors whether the waste unit is installed.

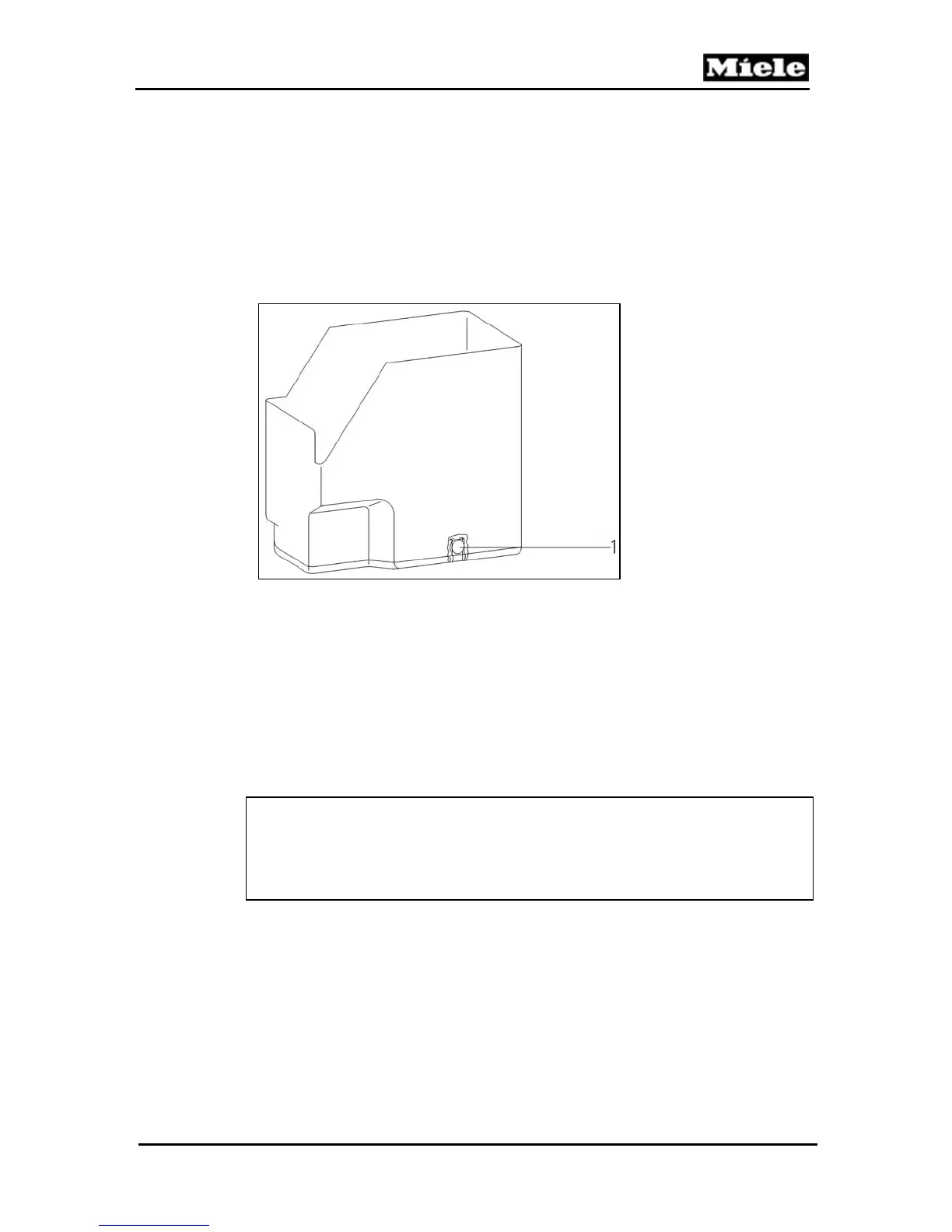

Figure 4-8: Waste Unit. (1) Magnet for Present Switch Actuation.
When the appliance is placed into the Service Mode, the top line of
the display shows the switches that have been activated. A “5” is
displayed when the Waste Unit is installed and the switch is
actuated. For further information refer to section 6 – Service Mode.
Note
On newer Waste Units, an additional magnet has been installed
that assist in keeping the waste unit attached to the metal frame
inside the appliance.
