Technical Information
28
CVA615 Coffee System
1. Dispenser lever
2. Switch - Dispensing (1S13)
3. Catch - Switch - Dispensing
4. Catch - Coil - Dispensing
5. Coil - Dispensing (1L1)
6. Spring
7. Actuator
8. Bolt
9. Dispenser flap
10. Wiper
4.13 Ground Coffee Dispensing

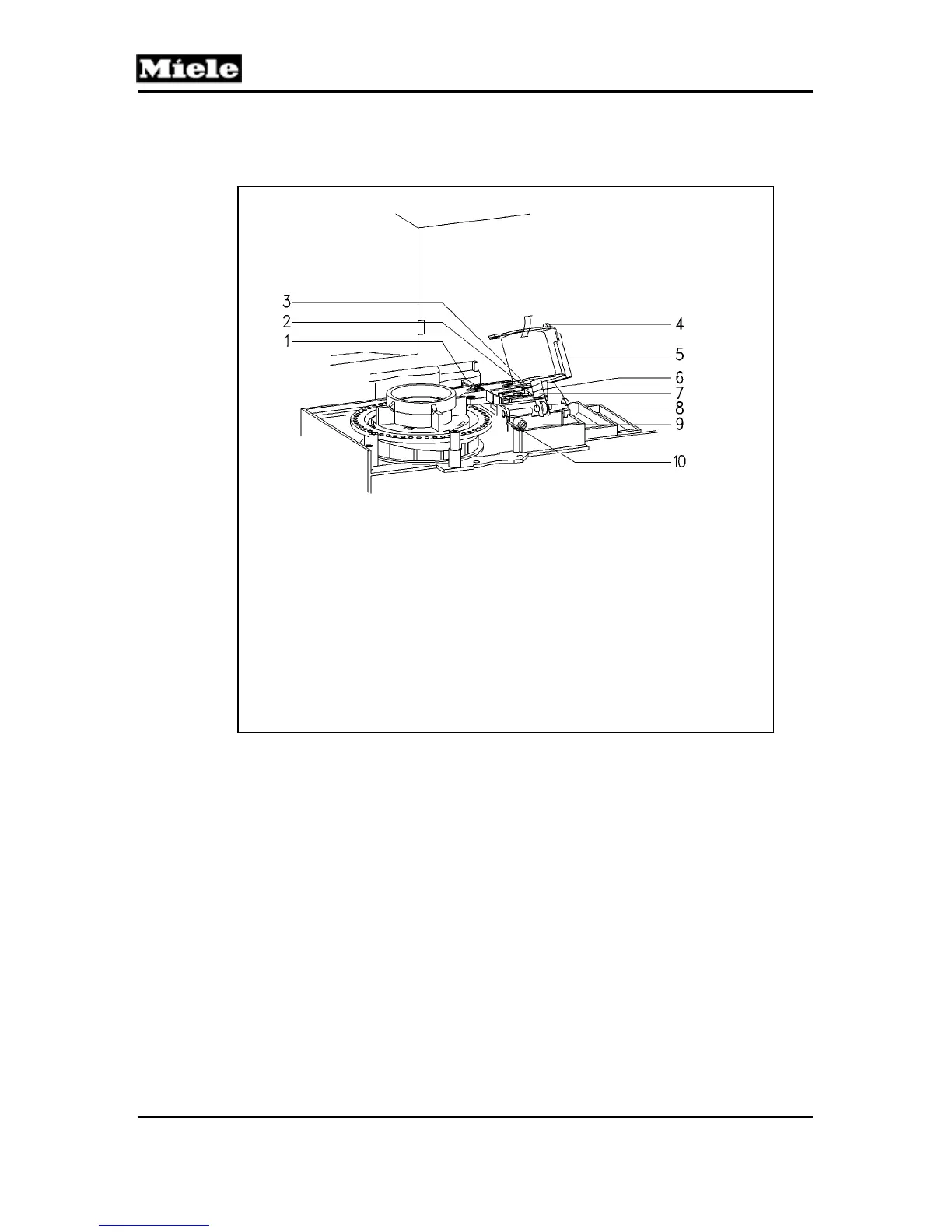

Figure 4-15: Coffee Dispensing Components
By adjusting the dispenser lever (figure 4-15, Item 1), the position
of the switch slide, in the dispenser container is modified. This
changes the volume of the dispenser container and hence the
quantity of ground coffee that it can hold before it is full. Each slider
setting alters the coffee quantity by approx. 0.5 grams.
