Technical Information
27

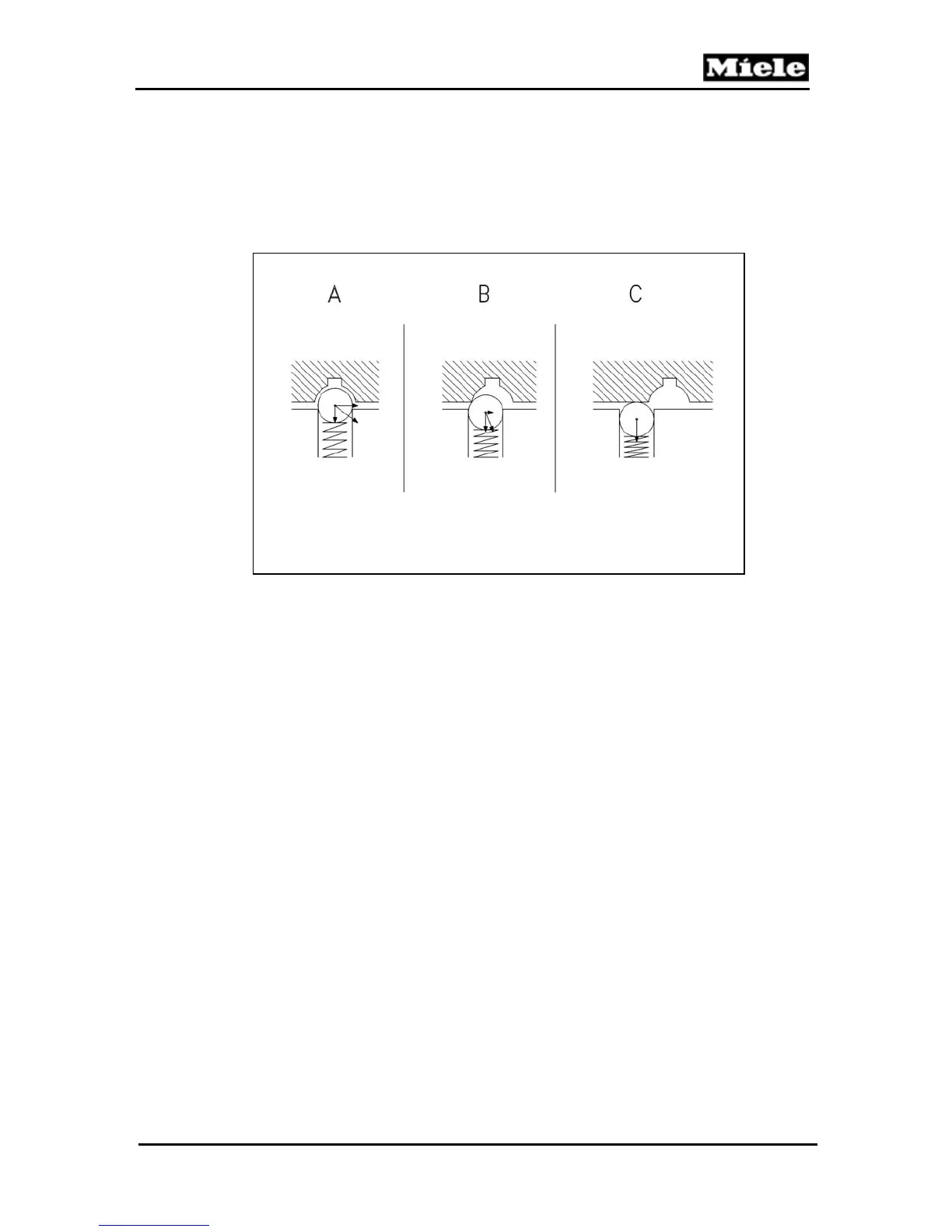

Should the Grinder Cone become blocked the balls are pressed
into the mounting (as shown below in figure C). The drive force is
interrupted; and the worm gear continues to operate via the
mounting.
A Normal operation
B Overload protection activated
C Force transfer interrupted
Figure 4-14: Ball Positions into the grinder cone, under different operating
conditions.
