Technical Information
70
CVA615 Coffee System
6. Clean the brewing chamber (Figure 5-30), ram and bottom filter
by hand with warm water without detergent, then dry.
7. Apply silicone grease to the ram lubrication points.

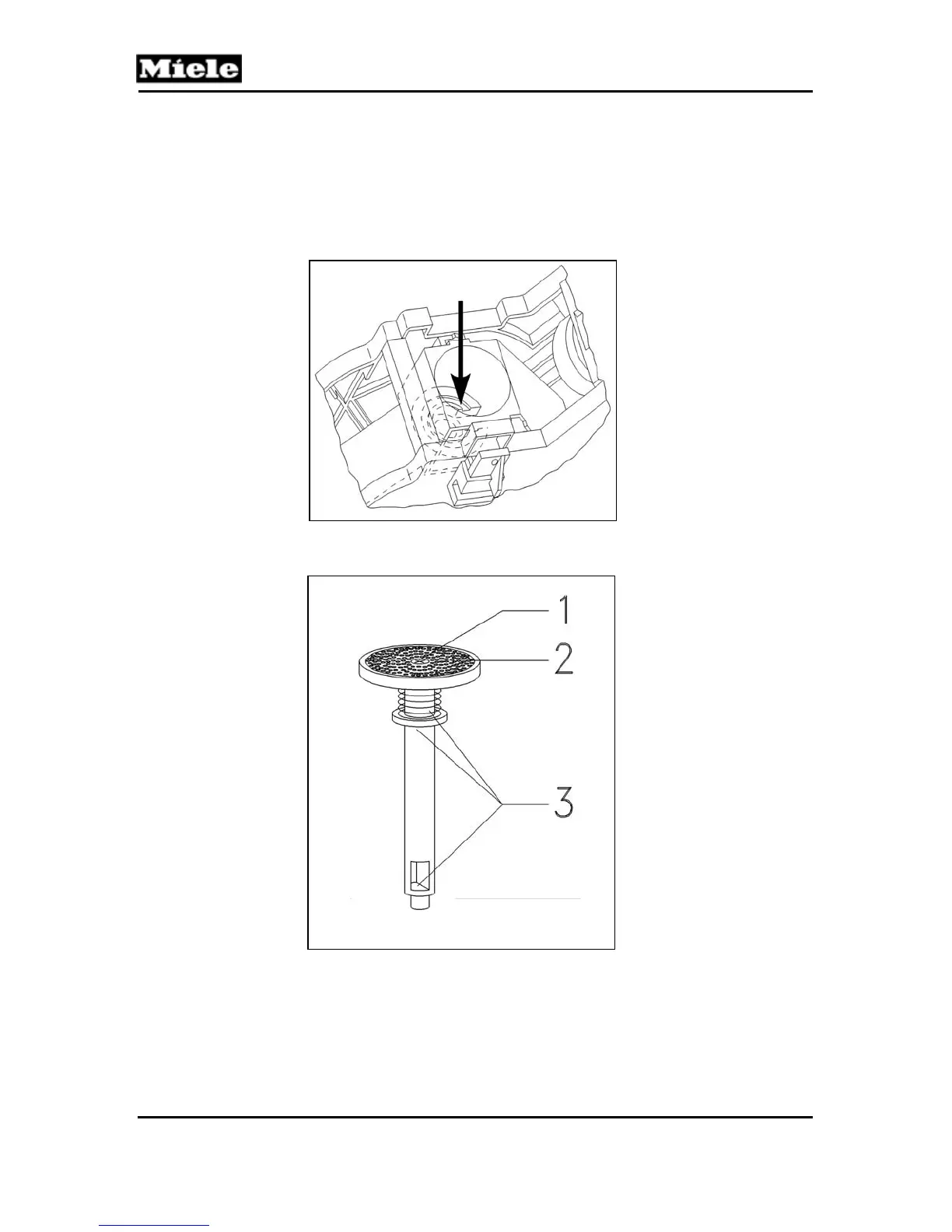

Figure 5-30: Brewing unit chamber inside the brew
unit assembly.
Figure 5-31: Ram assembly. (1) Filter Screw
(2) Filter (3) Lubrication points
