4.0 Function and Description

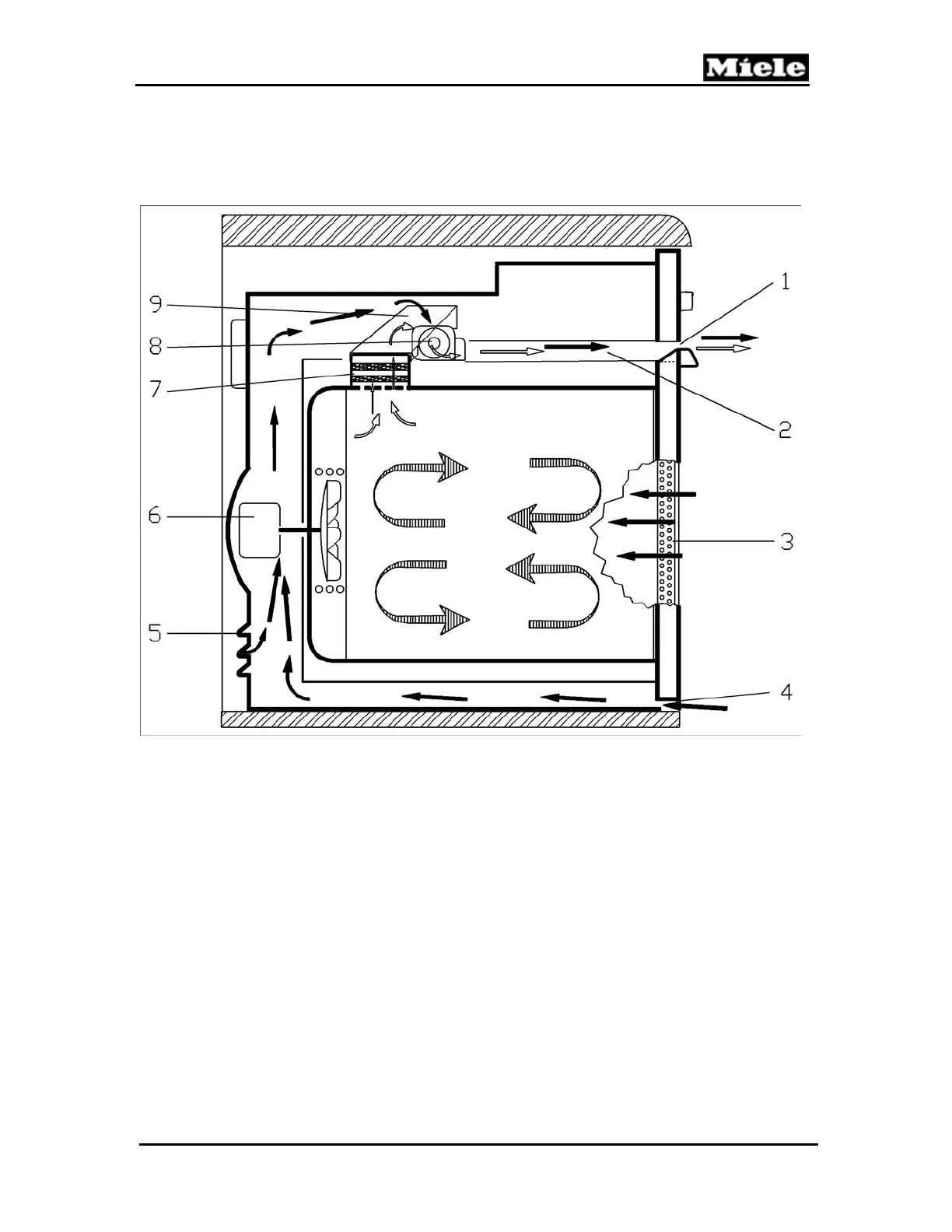

Figure 4-1: Cooling and Venting Air Paths – Novatronic Ovens H350/H373
1. Air Outlet
2. Air Duct
3. Air Intake At Deflector Strips
4. Air Intake
5. Air Openings At Rear
6. Oven Fan
7. Vapor Outlet Connection
8. Cooling Fan
9. Air Guide Duct
Continued on next page.
