Novotronic Models
Technical Information
47
5.24 Convection Heating Element - Removal
1. Perform door removal procedure
2. Perform oven removal
3. Perform rear panel removal
4. Perform shelf runner removal
5. Perform enamel rear panel removal
6. Remove the convection heating element retaining screw from the
oven cavity
7. Disconnect the electrical connections from the fan element at the rear
8. Remove the insulation strips
9. Remove the element

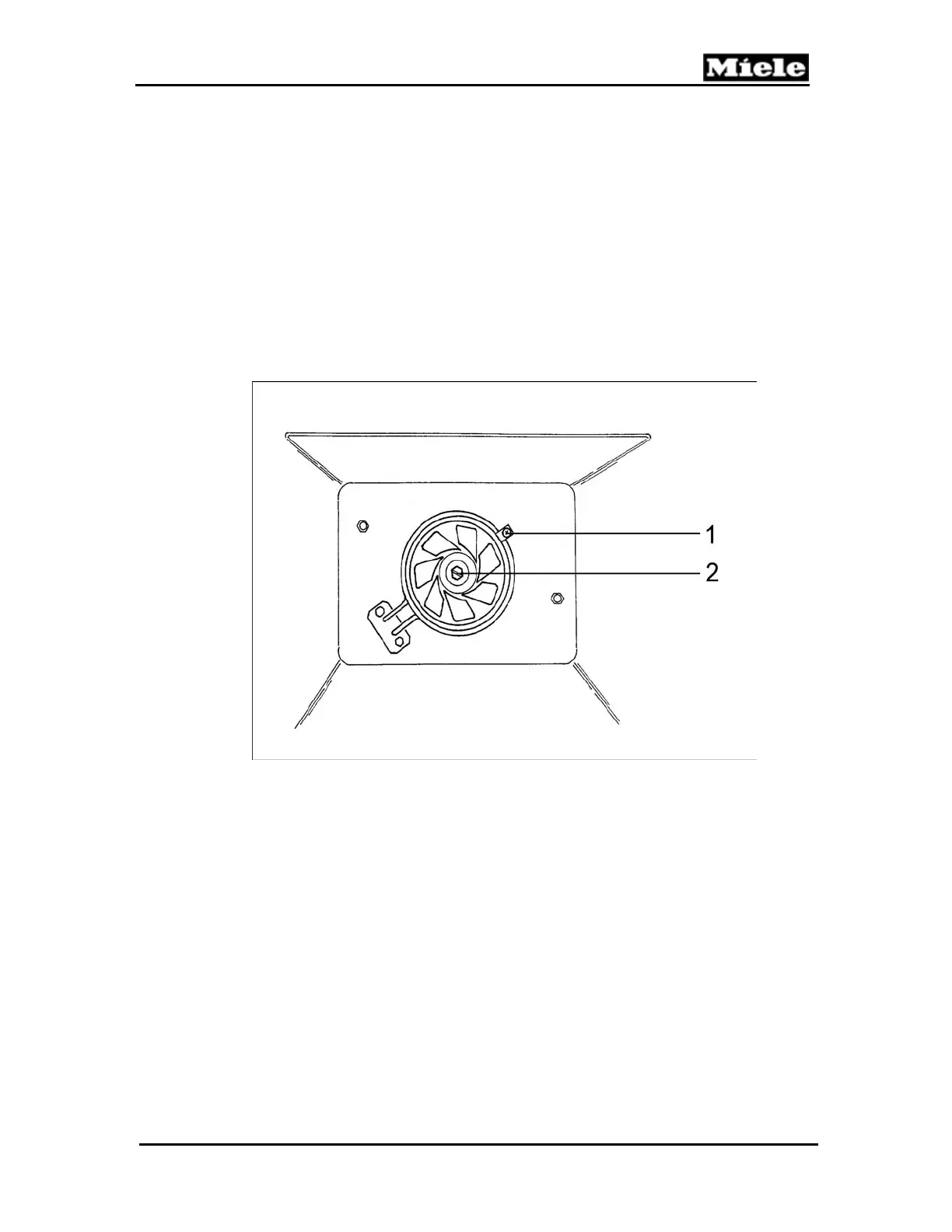

Figure 5-22: Convection Heating Element and Fan
