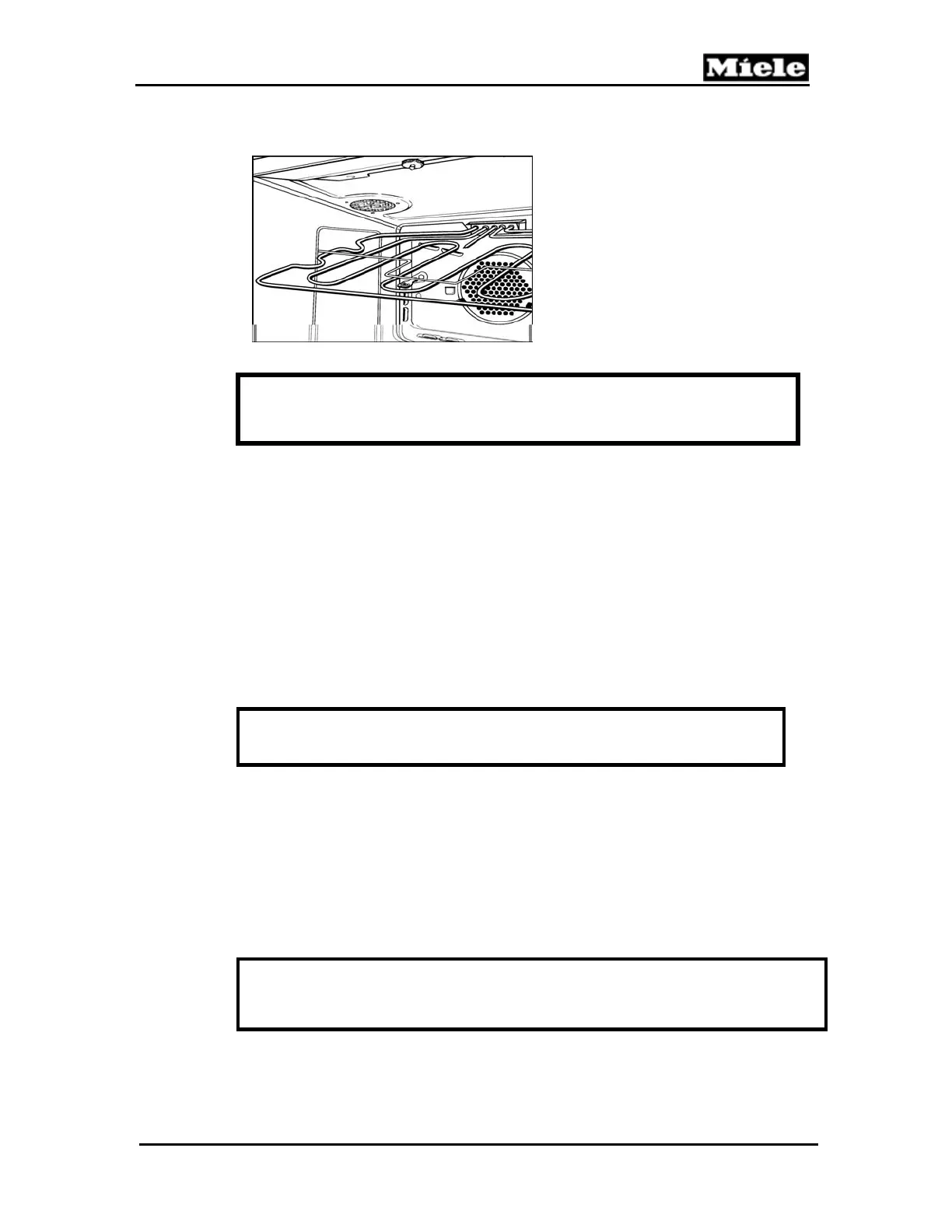

Figure 5-21: Removing the Upper Heating Element
Note: When installing the temperature PTC sensor ensure it’s pushed
fully into its slot on the roof/grill heater element
12. Install the new element in the reverse order of the removal steps
5.21 Lower Heater Element - Removal
1. Perform door removal procedure
2. Perform oven removal
3. Perform rear panel removal
4. Disconnect the electrical connections from the floor heating element
at the rear
5. Remove the floor heating element mounting screw
6. Remove the insulation and floor heating element
7. Install the new element in the reverse order of the removal steps
Note
After installing the element the insulation must be re-installed
5.22 Oven Temperature Sensor - Removal
1. Perform door removal procedure
2. Perform oven removal
3. Perform front cover removal
4. Perform rear cover removal
5. Perform rear panel removal
6. Remove the sensor with its cap
7. Disconnect wiring from the PTC sensor
Note
When installing the PTC sensor ensure it is fully pushed into its socket
