Miele H350 - 5.0 Service and Maintenance; 5.1 H-350 Electrical Layout

Novotronic Models
Technical Information
29
5.0 Service And Maintenance
5.1 Lay Out Of Electrical Components
H-350 Layout

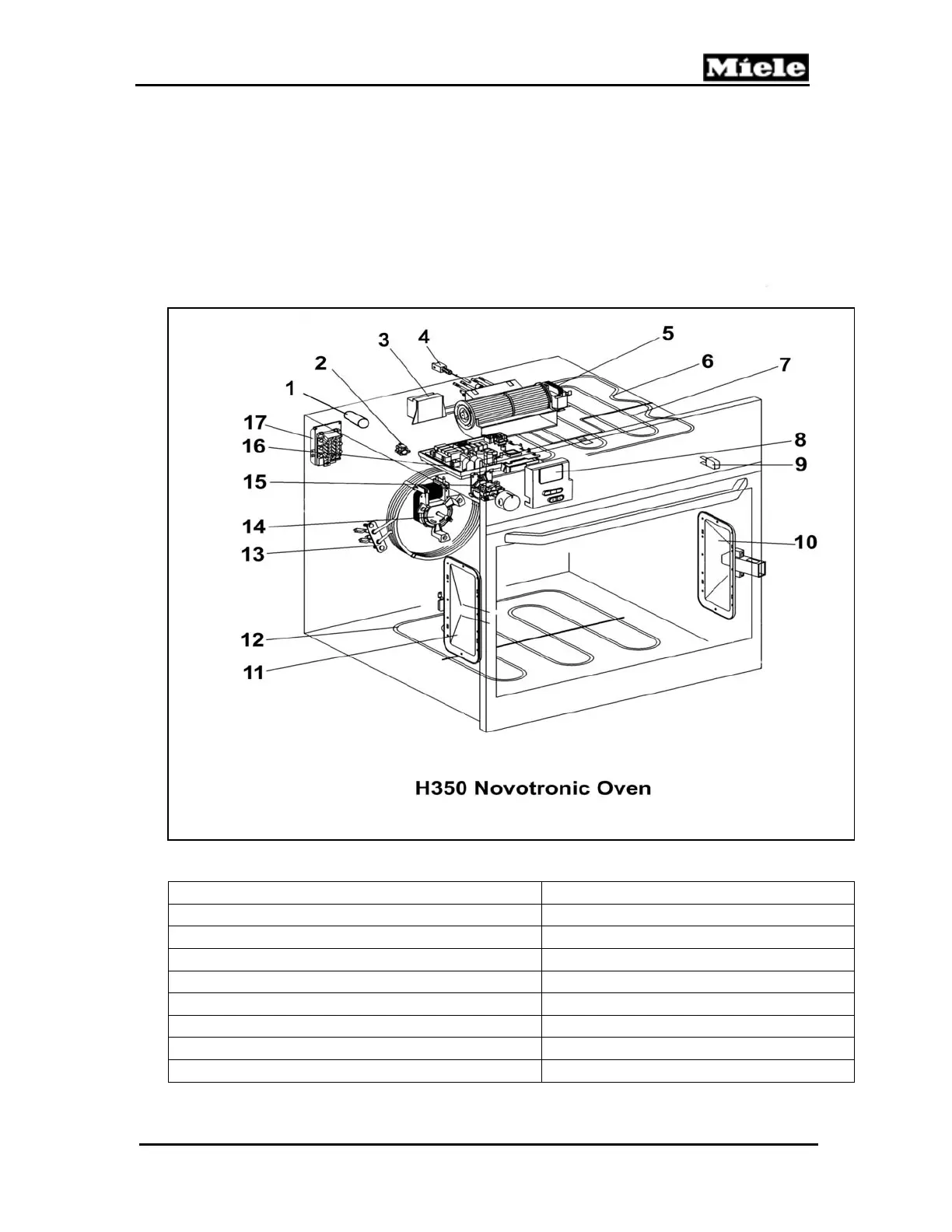

Figure 5-1: H-350 Overview
1. Interference Suppressor Capacitor 10. Lamp
2. Temperature Limiter 11. Lamp
3. Transformer 12. Heater Element, Bottom Heat
4. Temp sensor, Oven 13. Heater Element, Convection
5. Cooling Fan 14. Motor, Convection Fan
6. Heater Element, Top Heat 15. Selector Switch
7. Heater Element, Grill 16. Electronic Unit
8. Electronic Display 17. Terminal Block
9. Door Switch
