Miele H350 - 4.1 Catalyser System (H387)

Novotronic Models
Technical Information
19
4.1 Catalyser System (H387 Models)

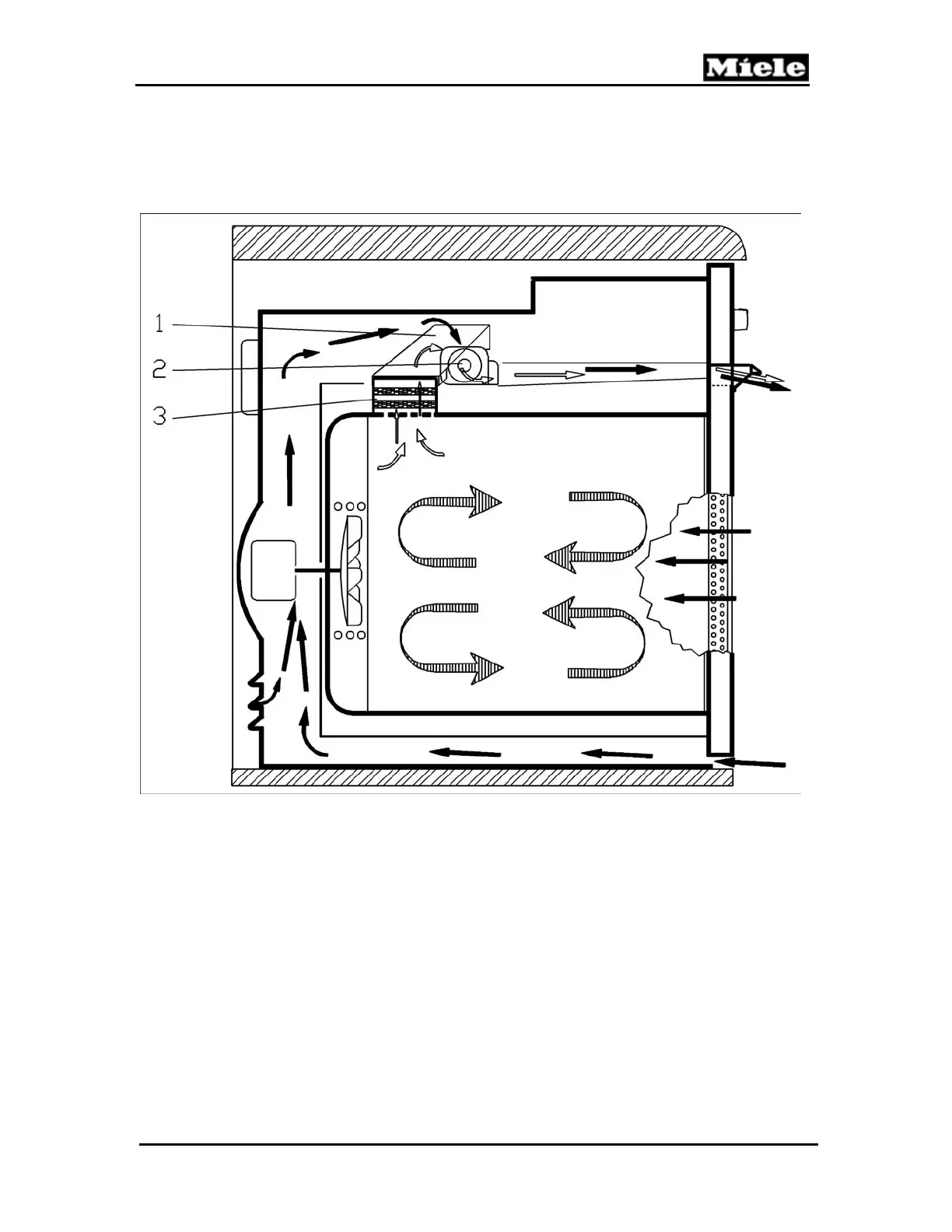

Figure 4-2: Cooling and Venting Air Paths – Novatronic Ovens With Self-Clean (H387)
1. Refer to figure 4-2
2. The catalyser (3) removes grease particles from expelled air to
reduce odors
3. Grease particles and substances producing odors are converted
to water and carbon dioxide.
4. The water and carbon dioxide are removed by the cooling fan (2)
and expelled via the vent duct (1)
