Novotronic Models
Technical Information
44
Upper Heater Element - Removal (continued)

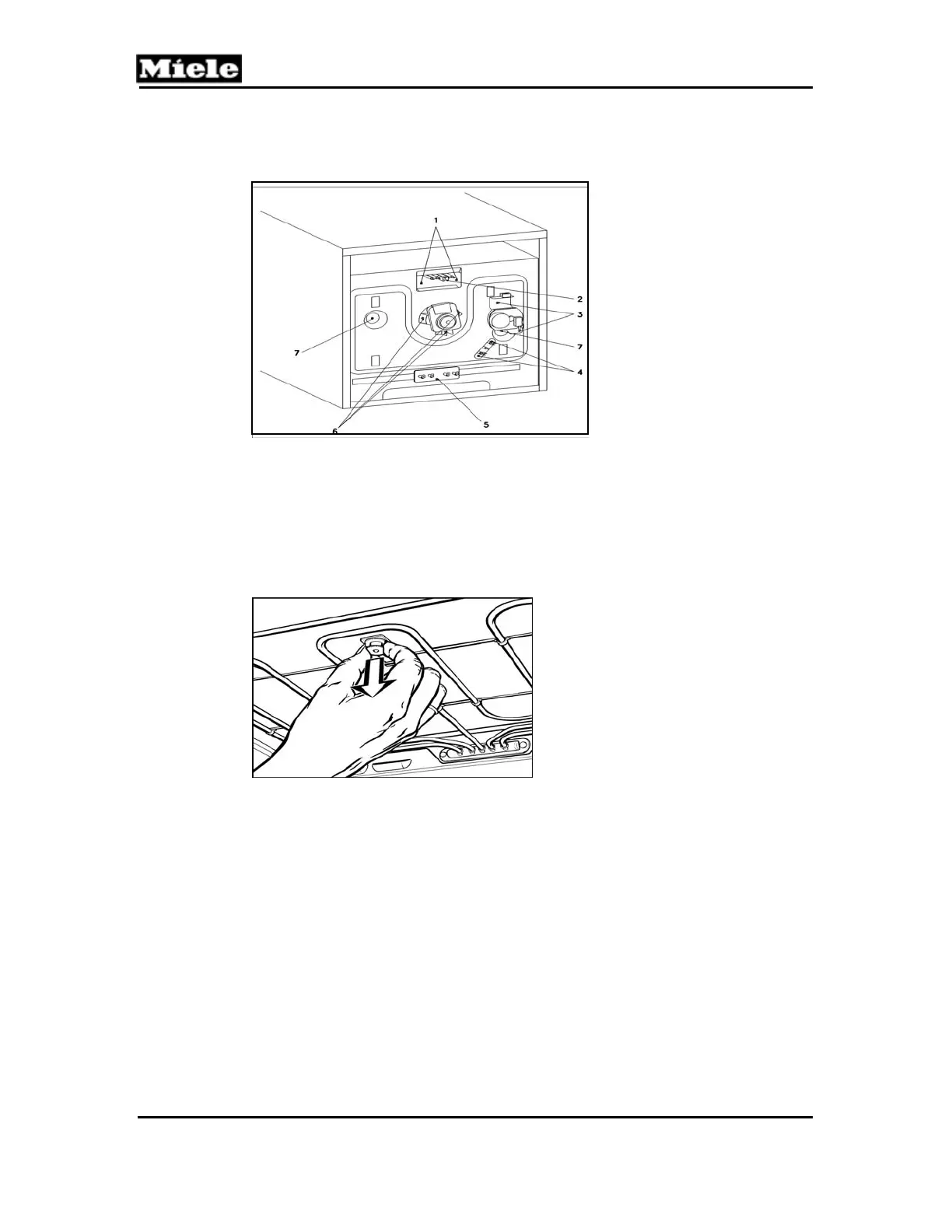

Figure 5-19: Rear View of Oven (H350 shown)
8. Disconnect the electrical connections from the roof/grill heater
element
9. Remove the 2 nuts securing the element
10. Release the upper heater element retainer and tilt the roof/grill heater
element down
11. Remove the upper heating element at a downward angle
Figure 5-20: Releasing the Upper Heating Element Retainer
Continued on next page.
