Novotronic Models

Technical Information

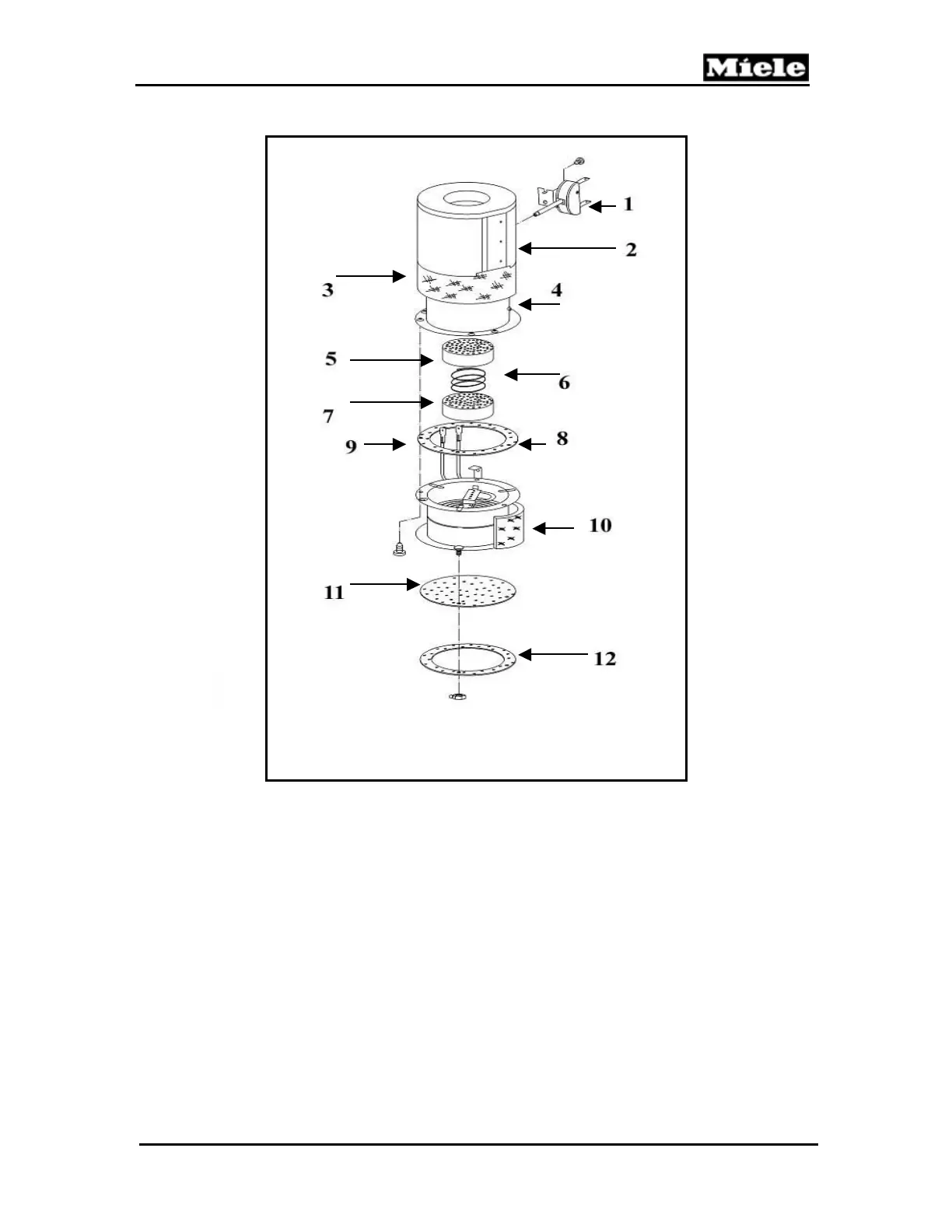

Figure 4-6: Catalyser Assembly – Components (H387)

1. PT 1000 Sensor

2. Insulating Cover

3. Insulating Material

4. Fumes Extractor

5. Catalyser Insert

6. Spring

7. Catalyser Insert

8. Catalyser Seal

9. Heater Element

10. Insulating Material

11. Filter

12. Catalyser Seal
