Novotronic Models

Technical Information

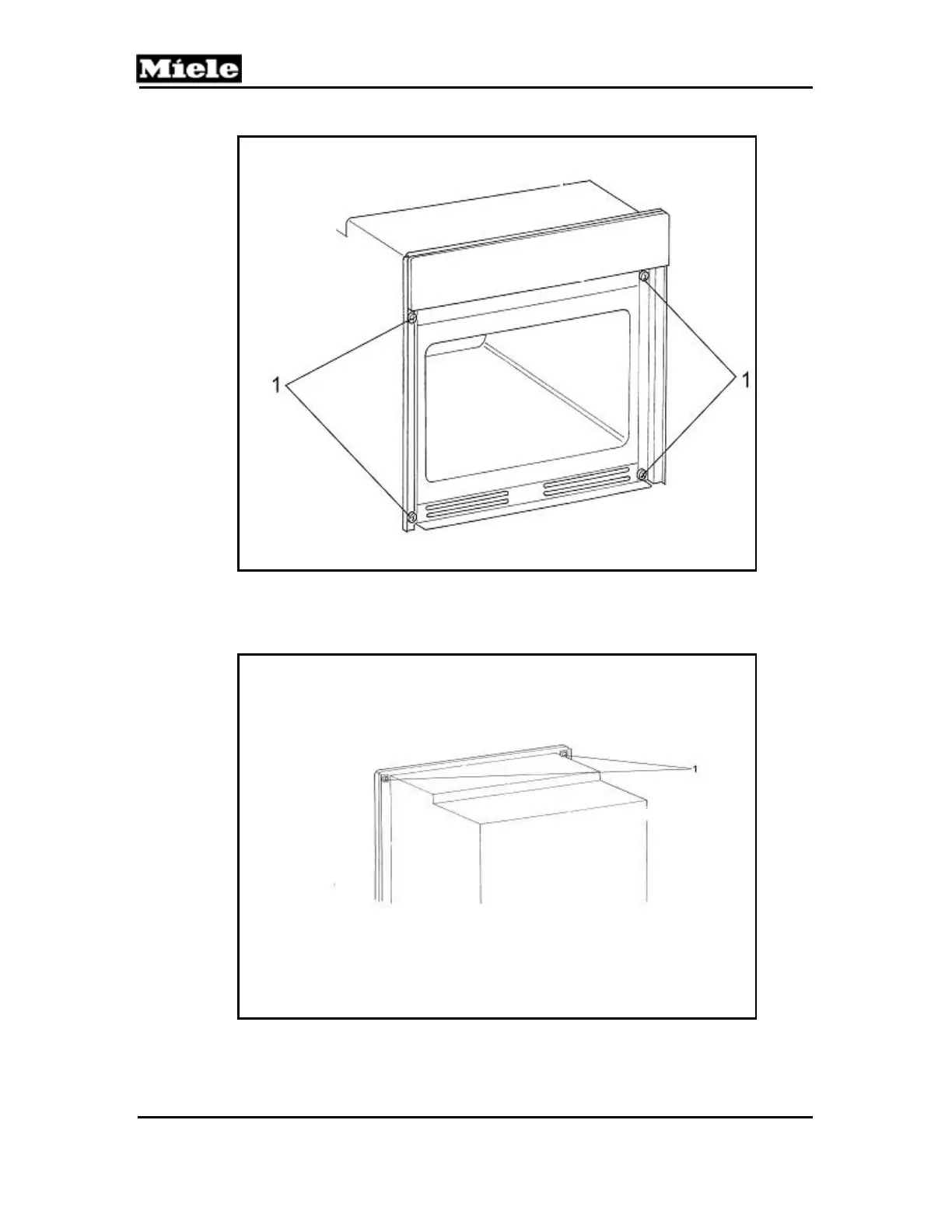

Figure 5-10: Deflector Strip Front Mounting Screws

4. Remove the appropriate screws from the rear of the appliance

Figure 5-11: Deflector Strip Aft Mounting Screws

5. Remove the appropriate deflector strips
