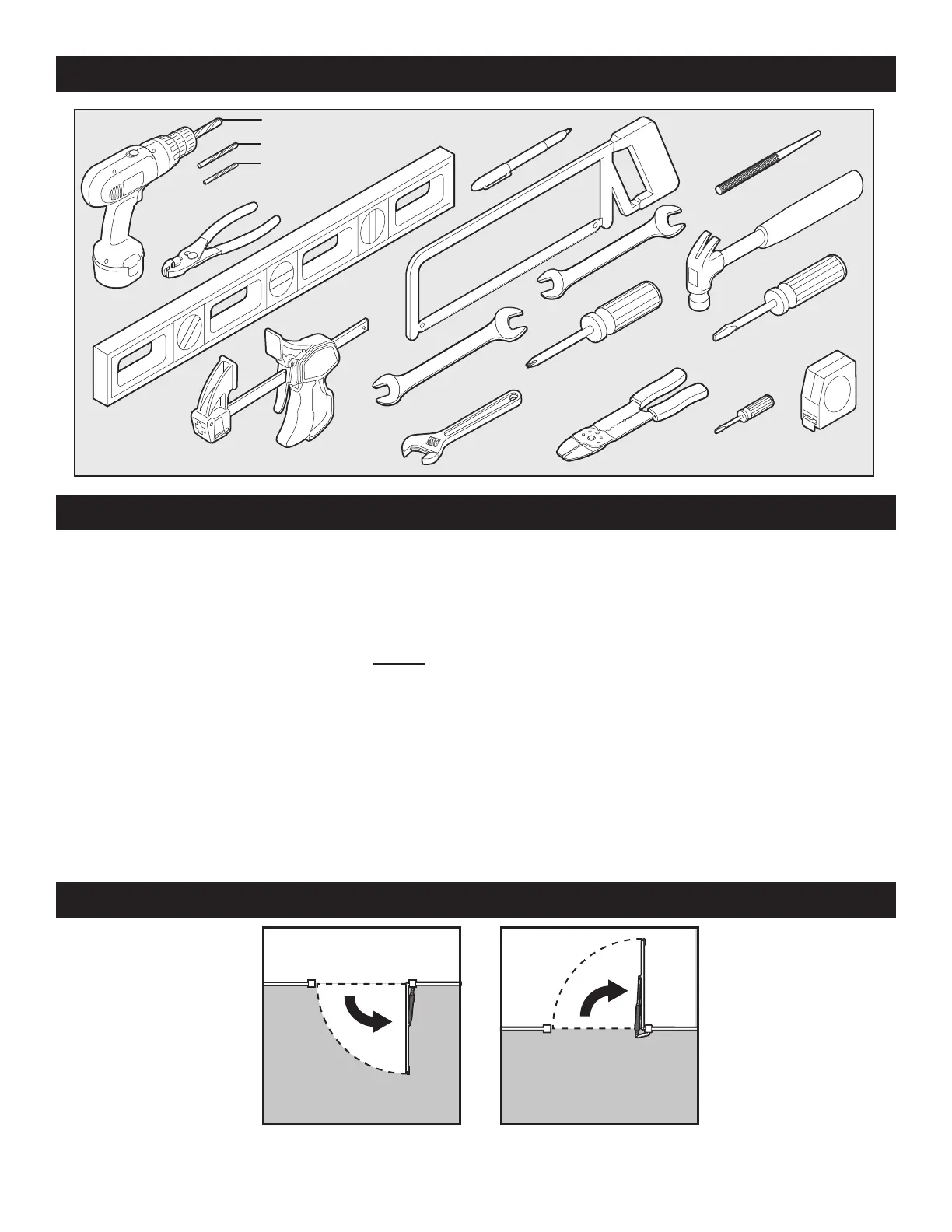

TS571W Installation Instructions 15
7/16” Bit
1/2” Bit
7/32” Bit
Drill
Pliers
Level
Clamps
Adjustable
Wrench
Pen
Center
Punch
Hammer
Tape
Measure
Small
Flat Head
Philips Head
Screwdriver
Flat Head
Screwdriver
Wire
Stripper
Hack Saw
1/2”
wrench
9/16”
wrench
● 12 Volt Auto or Marine Battery.
● Needed is 16 gauge low voltage direct burial wire to
run from the transformer to the control box; length
depends upon the distance between the transformer
power supply and the control box. See Transformer
or Solar panel wiring Installation on page 33, and
the accessory catalog.
● PVC conduit.
● If you have thin-walled tube or panel gates, see
Reinforcing Gates for the Gate Brackets, next page.
● Depending on the type of gate, a horizontal cross
member or mounting plate may be needed to
mount the front of the operator and gate bracket to
the gate. See the Reinforcing Gates for the Gate
Brackets examples, next page.
● Surge protection for transformer.
● Some types of installations require u-bolts.
● Additional washers or a metal plate may be
needed for wooden post.
● Weatherproof cover for outdoor outlet and
transformer.
● If the post is larger than 6”, bolts longer than 8”
are needed.
● 12 Volt outdoor auto or marine battery
ITEMS NOT INCLUDED
TOOLS NEEDED
CHECK DIRECTION OF GATE SWING
Pull-to-Open Option
Instructions begin on page 2.
Push-to-Open Option
Instructions begin on page 8.
Your Property Your Property
Pull-To-Open
(arm retracts to open)
Push-To-Open
(arm extends to open)
(Requires Push-To-Open Bracket
#FM148—NOT INCLUDED)
To Next Page
