42 TS571W Installation Instructions

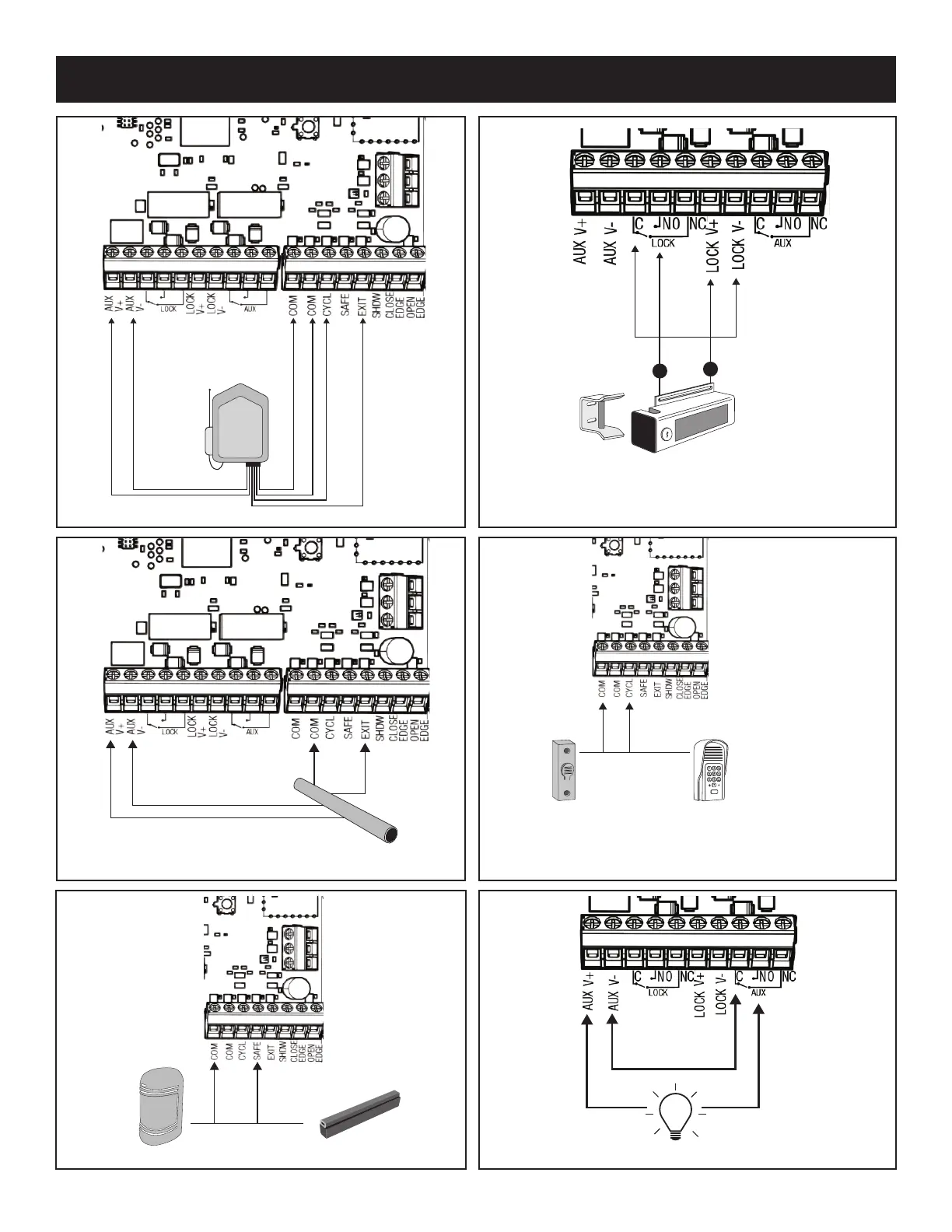

CONNECTING ACCESSORIES
Yellow & Shield
Black Blue
Red
Mighty Mule Vehicle Sensor
Refer to the Vehicle Sensor Manual for additional information if needed.
Automatic Gate Lock (FM143)
+
-
NOTE: A wire jumper is required between
'LOCK V-' and 'LOCK Relay Common'.
Mighty Mule
Push Button Control
NOTE: Connections are for typical applications.
For additional connection options not illustrated
here refer to the accessory manual for details.
Mighty Mule Keypad
For FM130/FM130-SW and FM136,
see Appendix A in this manual.
Black
Green
Brown
Blue
Yellow
Red
Garage Door Receiver
Photo Beams Edge Sensor
Additional
Jumper Wire
Light Bulb (active while cycling)
To Next Page
