Mighty Mule TS571W - Closed Limit Programming (Pull to Open)

34 TS571W Installation Instructions

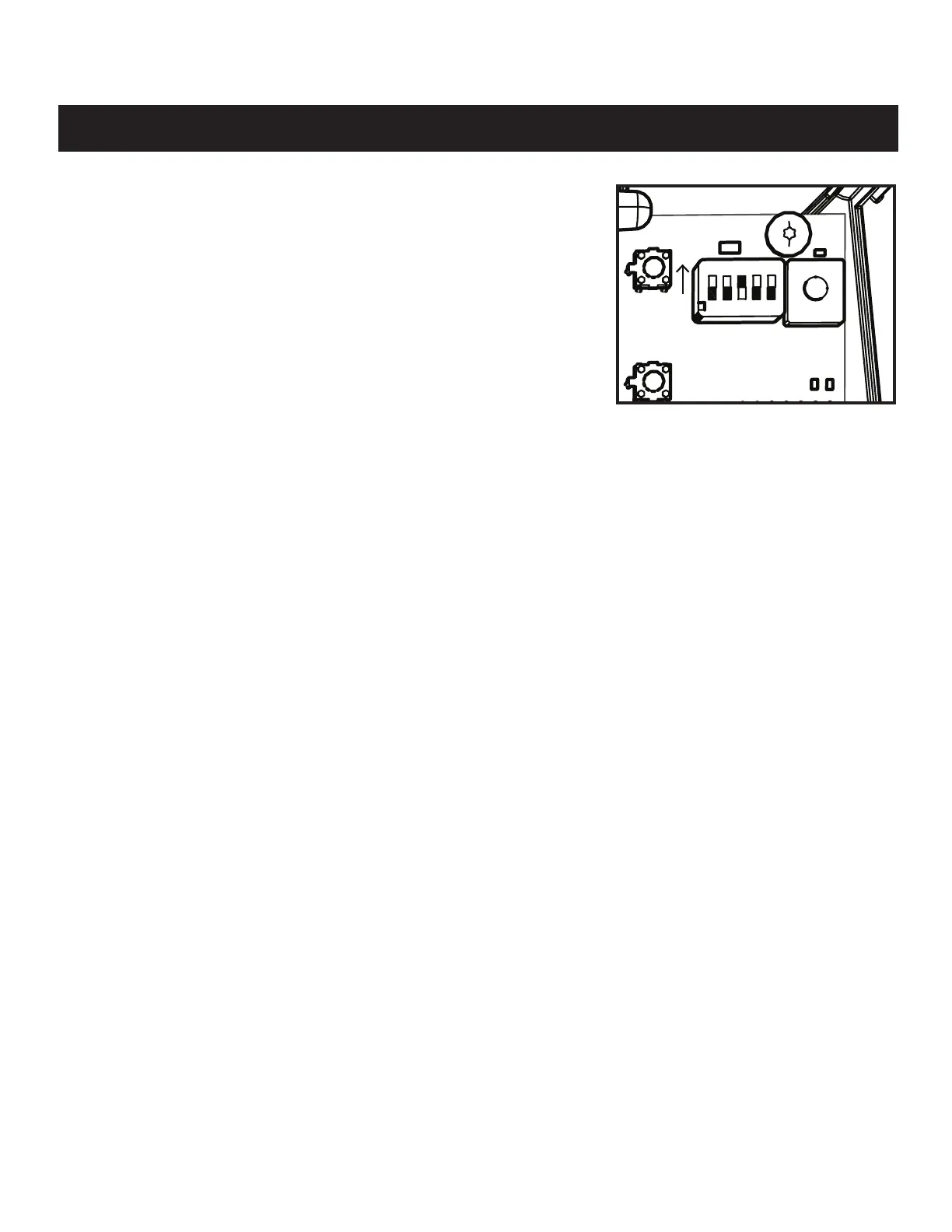

DIP SWITCHES SETTINGS
Electrical Installation and Setup
1. Push/Pull-to-Open
● On � = Push
● Off
❚
= Pull
For changes to this switch to take effect, the unit must be reset or power cycled.
2. Powering the System
● Locate the ON/OFF switch on the bottom left of the control box.
● Toggle the switch to the ON position.
● The system will take approximately 20 seconds to power up indicated by an
audible tone and LED D17 will ash.
3. Warning
● The WARNING DIP switch toggles a movement alarm ON or OFF.
10017426-CtrlBox_CoverOFF.ai
GRN
WHT
BAT+
AUTO
CLOSE
RESET
PULL
STAGGER
WARNING
SOFT S/S
BAT–
GRN
WHT
BRN
ORG
BRN
ORG
RED BLU
RED BLU COM COM CYCL SAFE EXIT
SHDW
AUX V+ AUX V-
LOCK V+ LOCK V-
CLOSE EDGE OPEN EDGE
PRIMARY
SECONDARY
LOCK AUX
SW1
SW2
PUSH
S2
S5
ON
12345
+
