16 TS571W Installation Instructions
Mechanical Installation
ASSESSING THE GATE FOR INSTALLATION
Your gate operator can be mounted to a variety of gate types. This section shows some of the most common, along with the
reinforcement methods recommended prior to or while mounting your gate operator.
Reinforcing Gates for the Gate Brackets

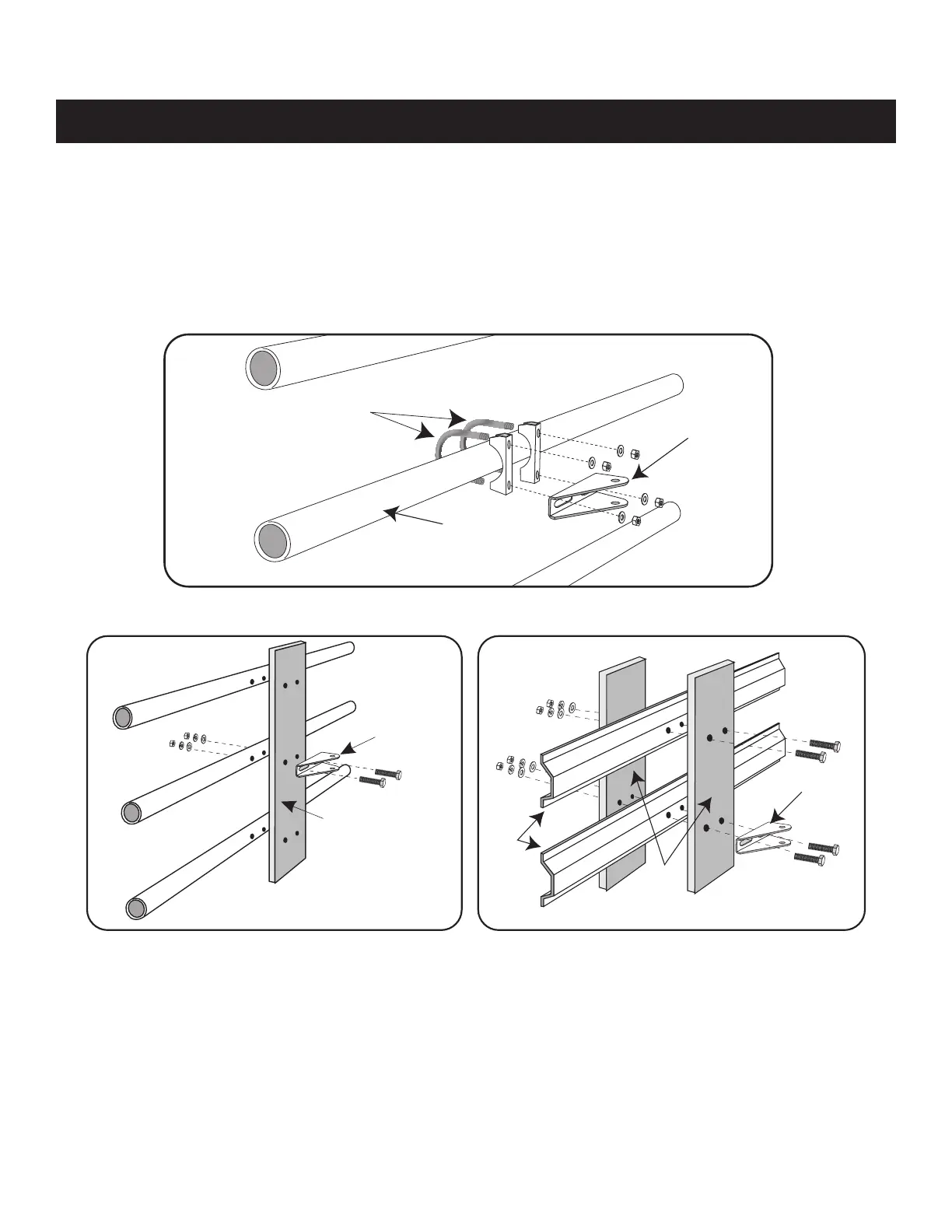

We recommend using a mufer clamp, wood, or metal, to reinforce thin-walled tube gates, or wood to reinforce panel gates as
shown. These reinforcement methods will prevent damage to the opener and gate. Additional hardware may be needed depending
on the installation. Additional hardware necessary but not included.
Gate
Bracket
Panel
Gate
1" x 6"
Wood
Reinforcement
Gate Bracket
Wood or Metal
Reinforcement
(not supplied)
Thin Walled
Tube Gate
Gate Bracket
Muffler Clamp
(not supplied)
Mufer Clamp for Gate Bracket
Wood or Metal Reinforcement 1” x 6” Reinforcement
