32 TS571W Installation Instructions

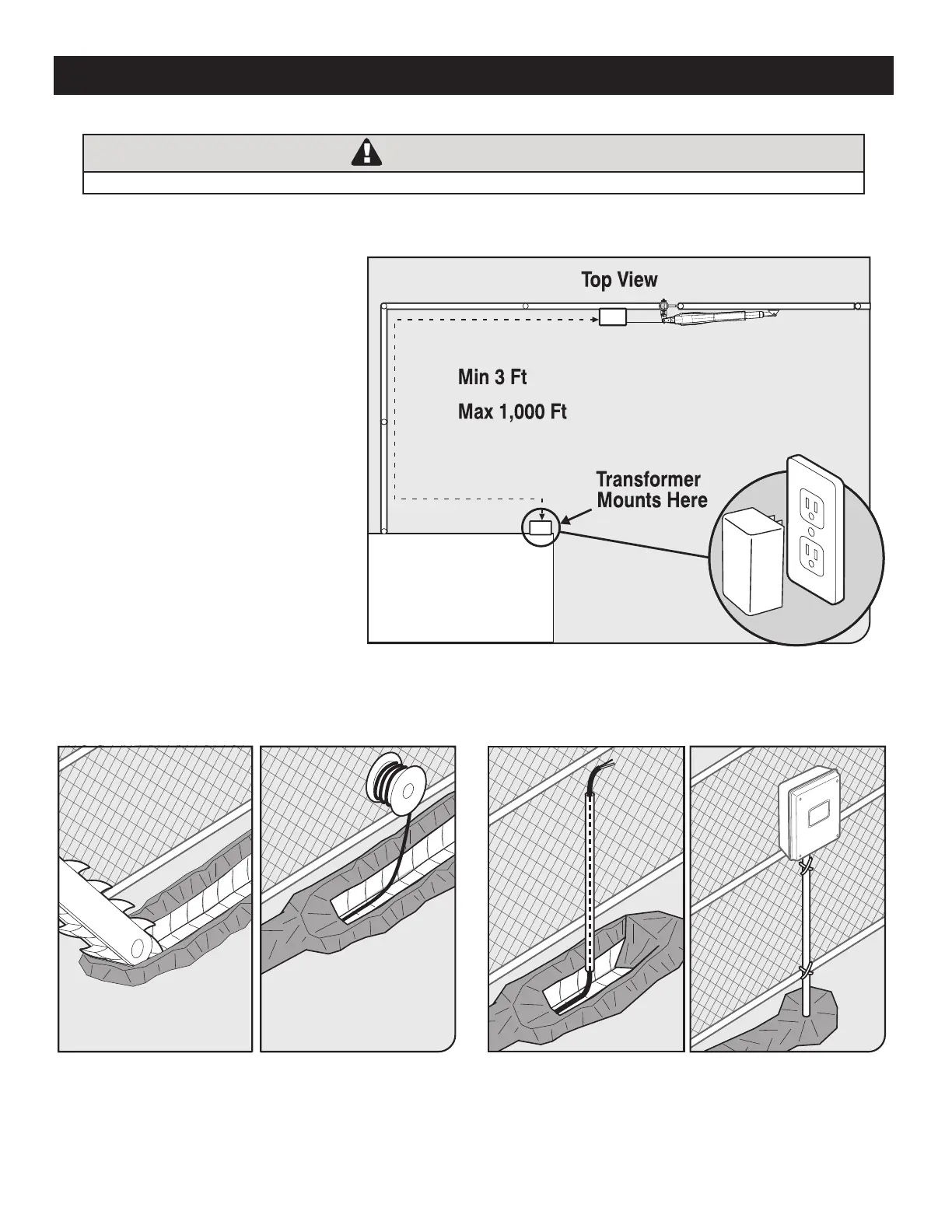

TRANSFORMER OR SOLAR PANEL WIRING INSTALLATION
WARNING
Before digging contact local authorities to locate underground utilities such as electric and gas service.
Step 1
Step 2
● Locate power outlet and identify wire
path to control box.
● If installing a solar panel (FM123 sold
separately), see solar panel instruction
manual and skip to Step 3.
● Note: If your outlet is outside, you
must use a weatherproof cover.
● Along the identied path between outlet and control box, dig a trench to lay the low voltage transformer wire (RB509 sold
separately).
● Use PVC conduit from the ground up to the control box.
● Recommend conduit in trench
CAUTION: Please
call your power company
before you dig. Failure to
do so could cause injury
or even death.
