Mighty Mule TS571W - Installing the Closed Position Stop Plate; Pull-To-Open

22 TS571W Installation Instructions
H
1
2
1
Fence Post: MM371W
Leading Edge of
Second Gate: MM372W
H
1
2
1
Fence Post

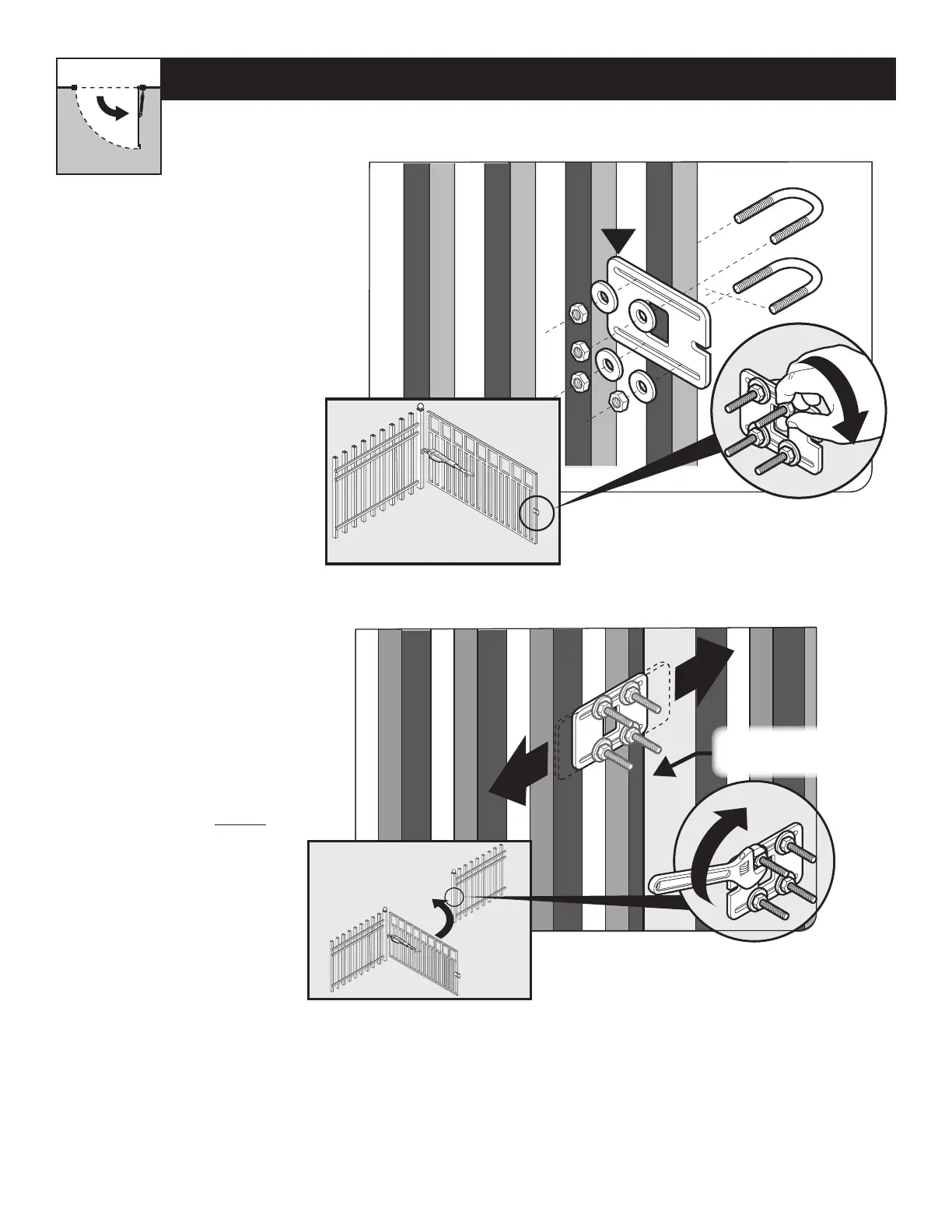

● Remove the operator from the
gate post and gate brackets.
● With the gate fully open, install
the closed position stop plate
(hardware not included).
● Do not fully tighten hardware
until after the next step.
● Swing the gate to the closed
position, and adjust the closed
position stop plate against the
fence post.
● Tighten the mounting hardware.
● Return the gate to the open
position and reinstall the operator
arm.
● To complete the pull-to-open
installation, see page 17.
INSTALLING THE CLOSED POSITION STOP PLATE / PULL-TO-OPEN
Step 1
Step 2
Your Property
