TS571W Installation Instructions 25

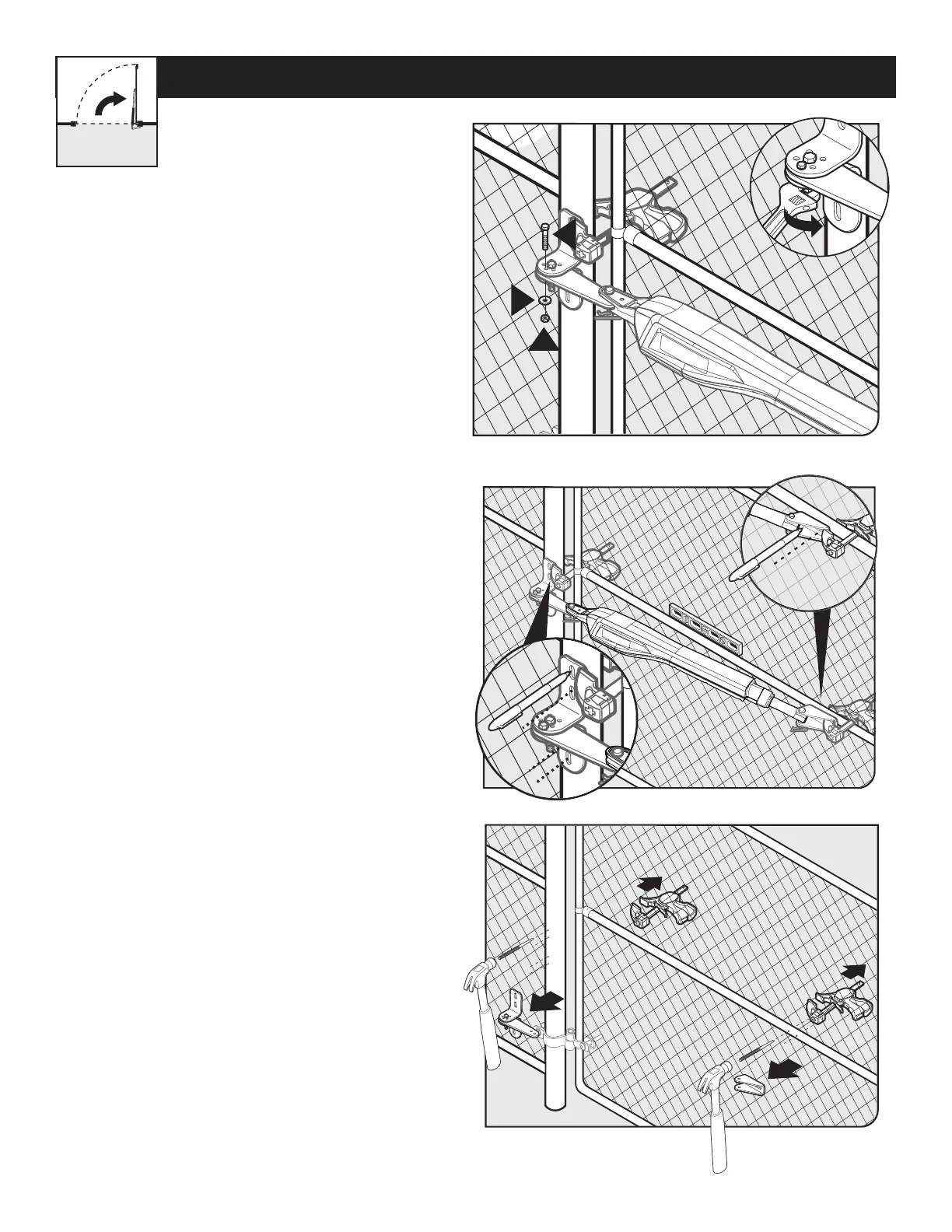

● Remove the gate post and gate brackets.
● Use a hammer and center punch to mark the
center of the mounting locations.
● Using a permanent marker, mark the center of
the mounting locations for the gate post bracket
subassembly.
● Remove the operator arm from the gate post and
gate brackets.
● Mark the center of the mounting locations for the
gate bracket.
PUSH-TO-OPEN OPERATOR MOUNTING
Step 6
Step 5
Step 7
Q
K
U
● Close the gate and reattach the operator to the
gate bracket.
● Ensure that the operator arm is level and the
brackets are securely clamped.
● Secure the Push-to-Open pivot bracket in place
by installing the hardware shown. Tighten both
bolts ‘O’ and ‘Q’.
