OM-277115 Page 13

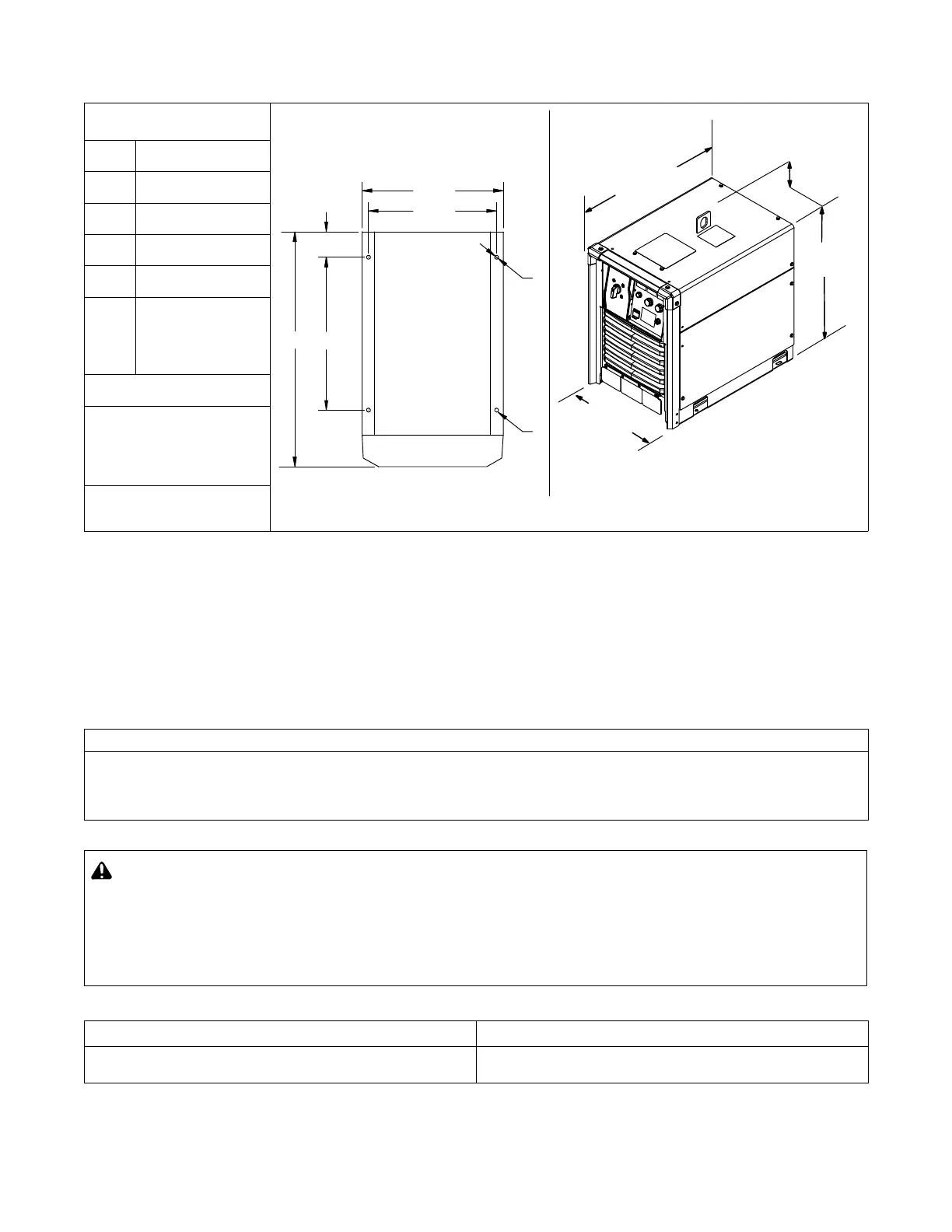

4-5. Dimensions And Weight
Hole Layout Dimensions
**28.22 in.
(717 mm)
24.89 in.
(632 mm)
278352-C
18.19 in.
(462 mm)
*Height includes lifting eye
**Length includes E-Stop cover
*27.19 in.
(691 mm)
B
C
D
A
E
G
F
A 17.52 in. (445 mm)
B 17.33 in. (441 mm)
C 26.17 in. (665 mm)
D 16.09 in. (409 mm)
E 2.28 in. (58 mm)
F .47 in. (12 mm)
G
.47 x 1 in.
(12 x 25mm)
Weight
350 Model:
127 lb (58 kg)
500 Model:
148 lb (67 kg)
Lifting Eye Weight Rating:
1000 lb (453 kg) Maximum
4-6. Static Characteristics
The static (output) characteristics of the welding power source can be described as flat during the GMAW process and drooping during the CAC−A
process. Static characteristics are also affected by control settings (including software), electrode, shielding gas, weldment material, and other factors.
Contact the factory for specific information on the static characteristics of the welding power source.
4-7. Environmental Specifications
A. IP Rating
IP Rating
IP23S
This equipment is designed for outdoor use. It may be stored, but is not intended to be used for welding outside during precipitation unless
sheltered.
IP23S 2014−06
B. Information On Electromagnetic Compatibility (EMC)
! This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low
voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations, due to con-
ducted as well as radiated disturbances.
This equipment does not comply with IEC 61000−3−12. If it is connected to a public low voltage system, it is the responsibility of the installer
or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment can be connected.
IEC/TS 61000-3-4 can be used to guide parties concerned by the installation of arc welding equipment with an input current greater than 16 A
in a low voltage network.
ce-emc 2 2014-07
C. Temperature Specifications
Operating Temperature Range Storage Temperature Range
14 to 104 °F (−10 to 40°C) −4 to 131 °F (−20 to 55°C)
Temp_2016-07
