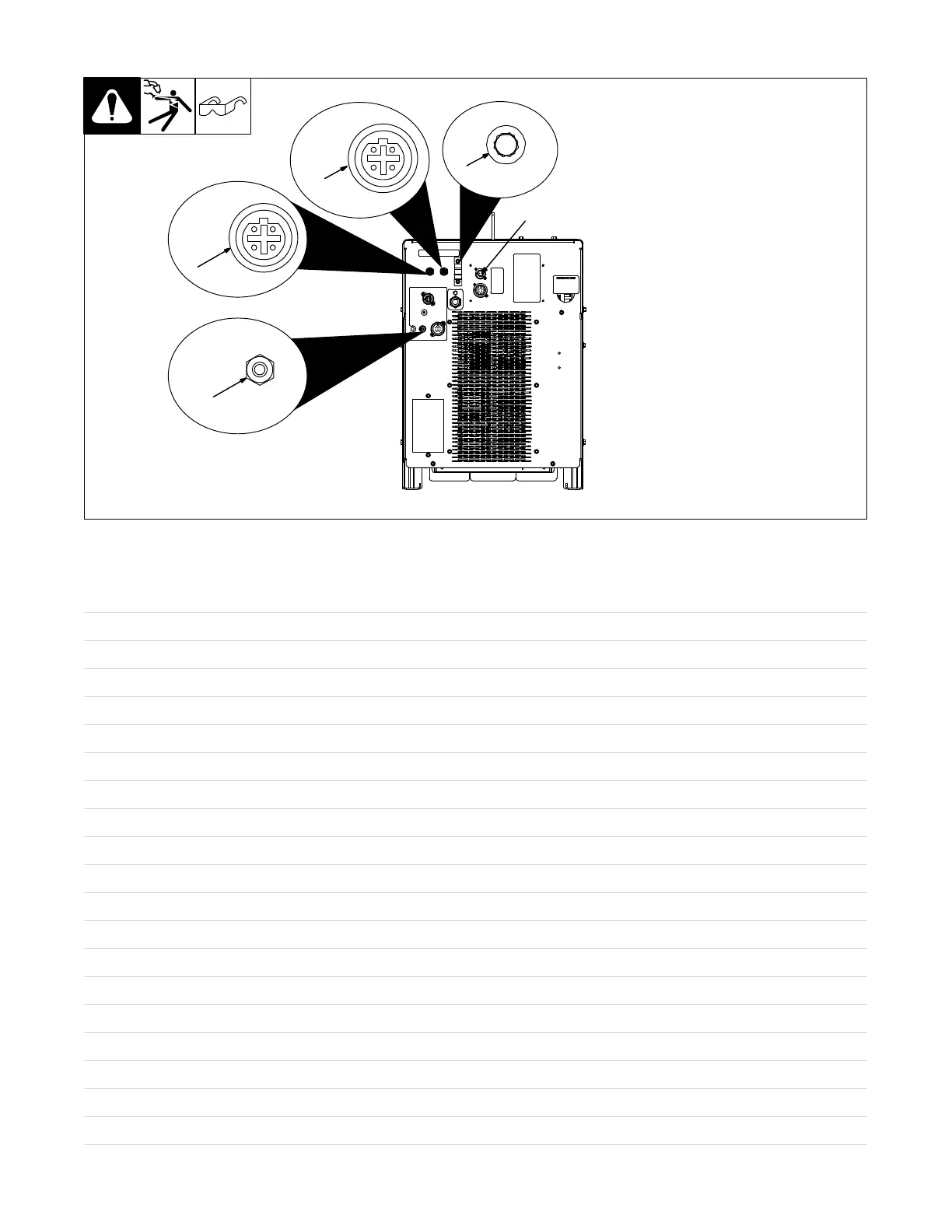

5-8. Supplementary Protector CB1, Communication Panel, And E-Stop
1 Ethernet Receptacle
Used for connecting a computer di-
rectly to the power source to ac-
cess configuration web pages.
2 Ethernet Receptacle
Used for connecting a robot directly
to the power source.
3 Supplementary Protector CB1
CB1 protects the wire feed motor
from overload. If CB1 opens, the
wire feeder does not work.
. Press button to reset breaker. If
breaker continues to open,
contact a Factory Authorized
Service Agent.
4 Wireless (WiFi) Antenna
Antenna for connecting to the inter-
net via (WiFi) wireless connection if
selected during configuration.
5 E-Stop Receptacle RC24
A short across the two sockets al-
lows unit to weld.
3
1
4
2
5
