Miller Auto Continuum 500 - Receptacle Information and Connections

OM-277115 Page 19

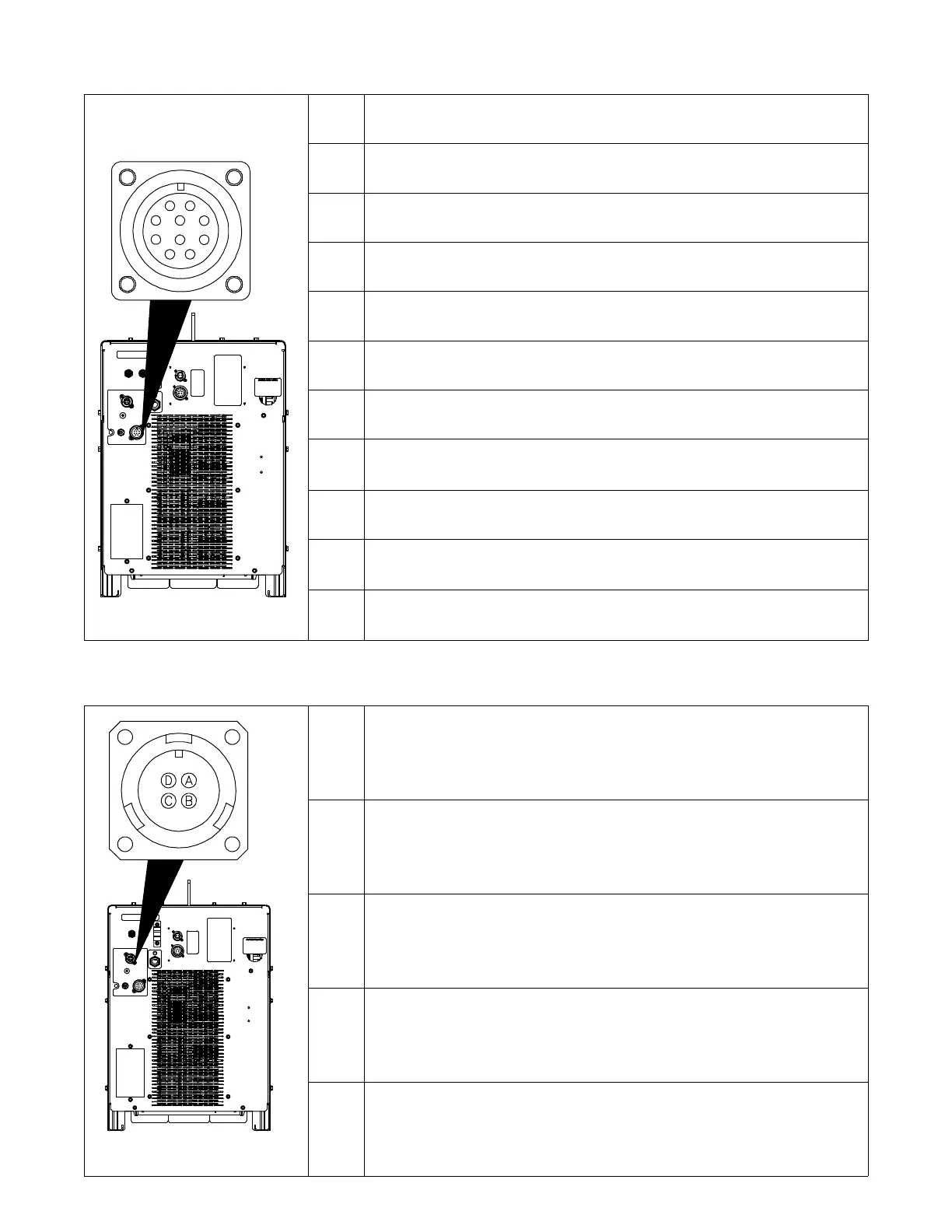

5-4. Remote 10 Wire Feeder Control Receptacle RC2 Information
278352−C
A
B
C
D
E
F
G
H
I
J
Socket Socket Information
A +50 Volts DC Common
B +50 Volts DC Common
C Voltage Sense
D +50 Volts DC Power
E +50 Volts DC Power
F ENET Rx −
G ENET Tx −
H Drain
I ENET Tx +
J ENET Rx +
5-5. Volt Sense Receptacle RC3 Information
278352−C
Socket Socket Information
A Not Used
B Volt Sense Negative
C Not Used
D Not Used
