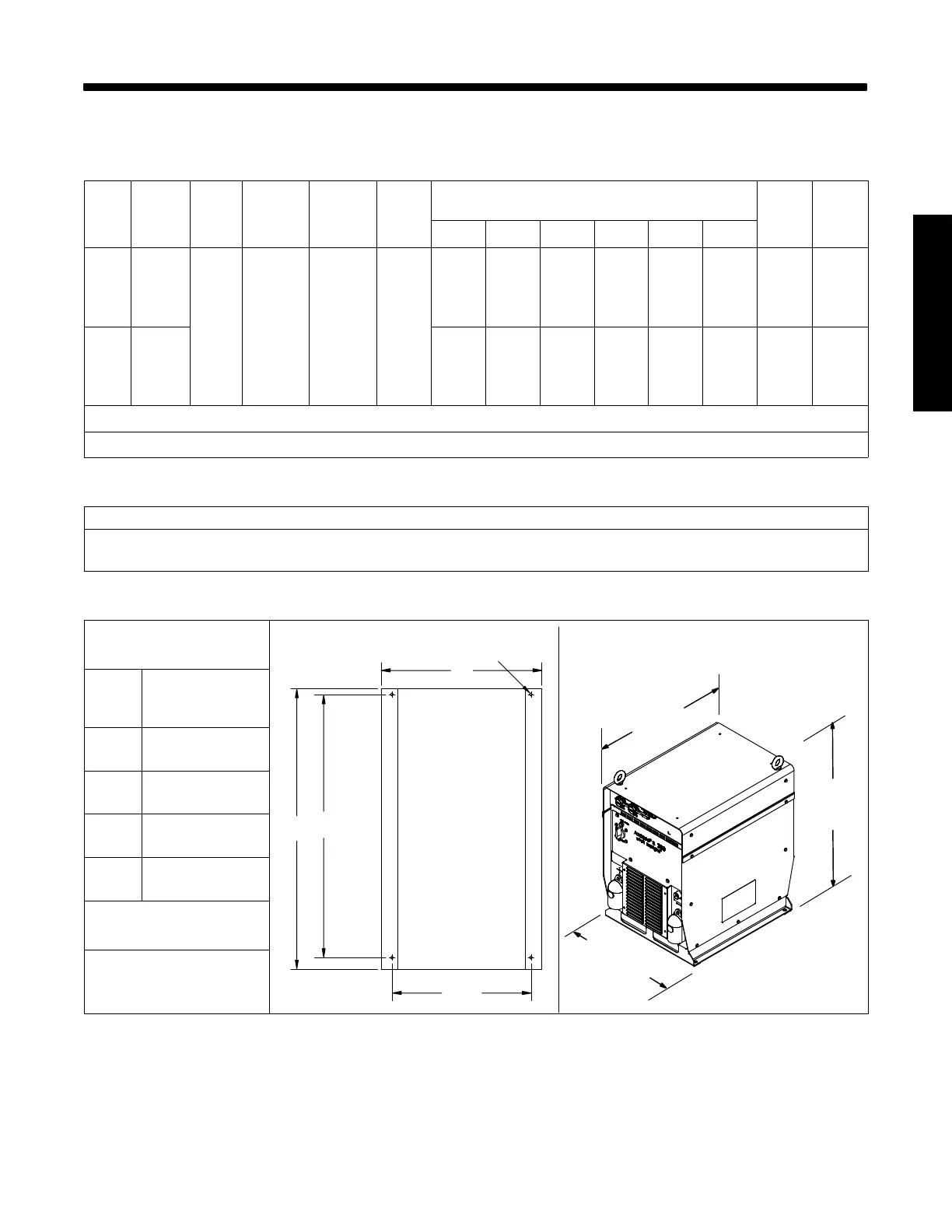

SECTION 4 − SPECIFICATIONS FOR AXCESS E 300
. Appearance of actual unit may vary from unit shown in manual.
4-1. Specifications
Input
Power
Rated
Welding
Output
Voltage
Range
Wire Feed
Speed
Range**
Wire
Diameter
Range
Max
Open
Circuit
Voltage
DC
Amperes Input At Rated Load Output 60 Hz,
Single-Phase/Three-Phase
Input
kVA
Input
KW
208 V 230 V 380V 400V 460 V 575 V
Single
Phase
175 A @
22.8 V
DC,
100%
Duty
Cycle
10-44
Standard:
50-1400
ipm
(1.3-35.6
mpm)
.035-1/16
in.
(0.8-1.6
mm)
75
25.3
(0-1A*)
23.0
(0-1A*)
13.5
(0-1A*)
12.8
(0-1A*)
10.9
(0-1A*)
8.6
(0-1A*)
5.3
(0.2*)
4.9
(0.04*)
Three
Phase
225 A @
25.3 V
DC,
100%
Duty
Cycle
19.9
(0-1A*)
17.8
(0-1A*)
10.9
(0-1A*)
10.3
(0-1A*)
9.0
(0-1A*)
7.3
(0-1A*)
7.1
(0.2*)
6.8
(0.04*)
*While idling; Input amperage fluctuates while idling and is always less than one Ampere. Use one Ampere for power efficiency calculations.
**Wire feed speed ranges are for GMAW welding. While pulse welding, wire feed speed ranges may be more limited.
4-2. Environmental Specifications
IP Rating
IP 23C
This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered.
4-3. Dimensions And Weight
Hole Layout Dimensions
A
B
C
E
D
21-3/4 in.
(552 mm)
26-1/2 in.
(673 mm)
Ref. 248 790-A
17-3/32 in.
(434 mm)
A
17-3/32 in. (434
mm)
B 17-3/8 in. (441 mm)
C 19-3/32 in. (485 mm)
D 16-3/32 in. (409 mm)
E 1/2 in. (13 mm)
Weight
117 lb (53 kg) Net
139 lb (63 kg) Ship
