OM-244 814 Page 16

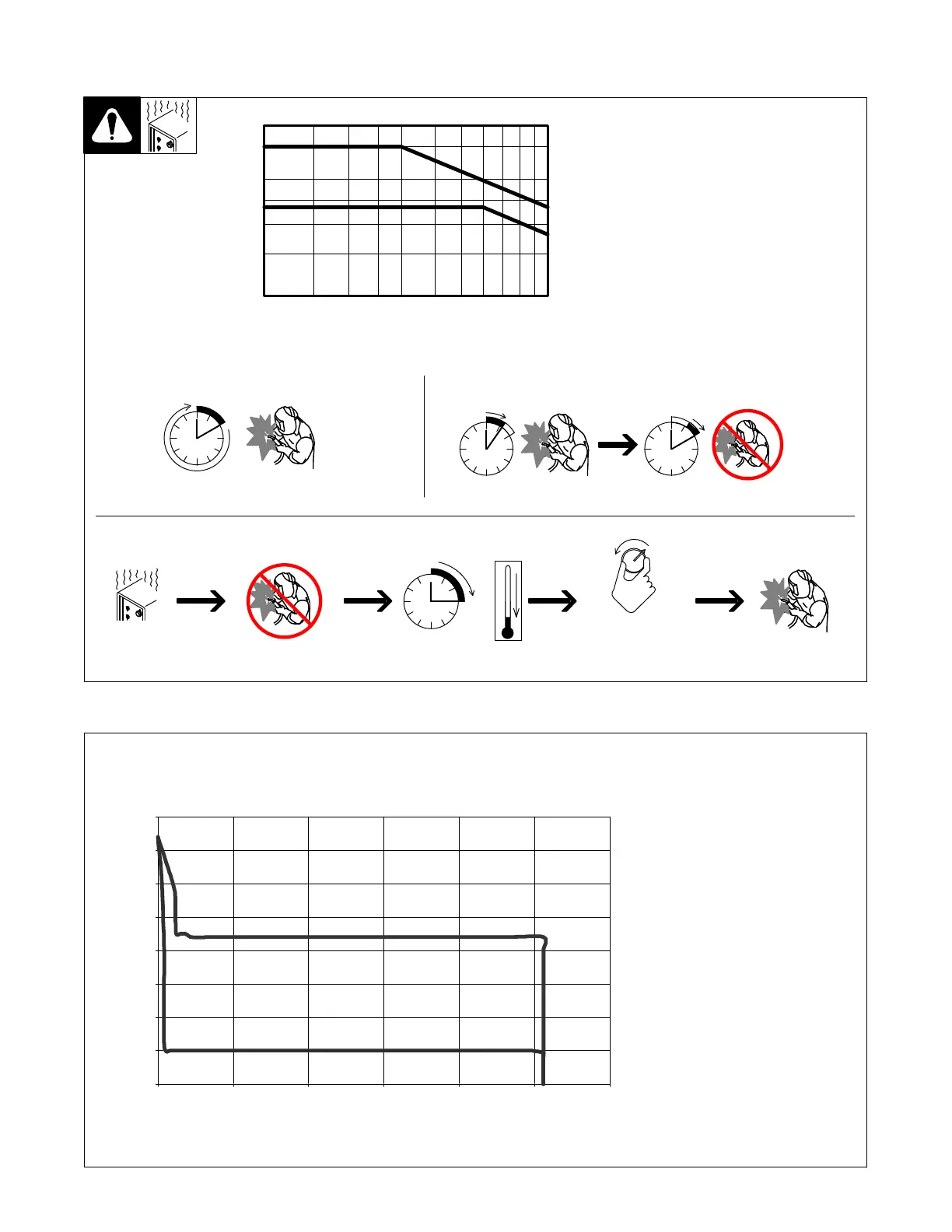

4-4. Duty Cycle And Overheating
Duty Cycle is percentage of 10
minutes that unit can weld at rated
load without overheating.
If unit overheats, thermostat(s)
opens, output stops, and cooling
fan runs. Wait fifteen minutes for
unit to cool. Reduce amperage or
duty cycle before welding.
NOTICE − Exceeding duty cycle
can damage unit and void warranty.
Overheating
0
15
A/V
OR
Reduce Duty Cycle
Minutes
duty1 4/95 − 178 651
Continuous Welding
100% Duty Cycle At 225 Amperes 60% Duty Cycle At 300 Amperes
6 Minutes Welding 4 Minutes Resting
3 PHASE
OPERATION
SINGLE
PHASE
OPERATION
% DUTY CYCLE
10 15 20 25 30 40 50 60 70 80 90100
100
150
200
225
250
300
400
500
WELDING AMPERES
4-5. Volt-Ampere Curves
va_curve1 4/95
Volt-ampere curves show minimum
and maximum voltage and
amperage output capabilities of
unit. Curves of other settings fall
between curves shown.
. This volt-ampere curve
represents the dynamic output
of the unit with a static load.
CV MODE
0
10
20
30
40
50
60
70
80
0 100 200 300 400 500 600
AMPERAGE
VOLTGE
