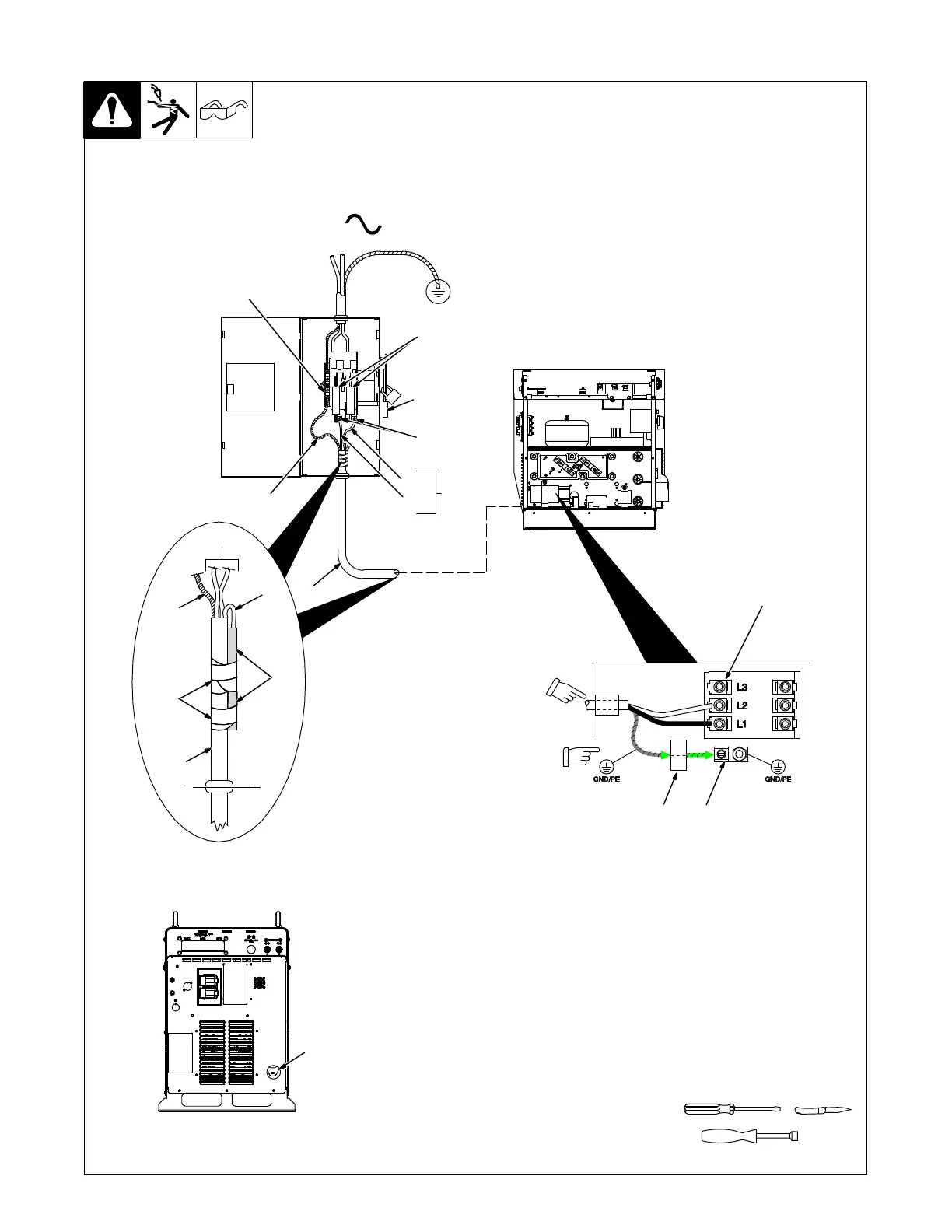

8-11. Connecting 1-Phase Input Power For Axcess E 300 Only
Input7 2012−05 − Ref. 803 766-C / Ref. 144 221 / Ref. 070 399 / 803 668-A / 248 842-A / Ref. 218 005-A
Tools Needed:
5/16 in.
Route ground conductor
through current transducer to
ground terminal.
Route input power cable
through tubing inside unit.
2
1
6
4
3
5
9
10
8
11
1
L1
L2
1
=GND/PE Earth Ground
5
2
12
13
14
7
