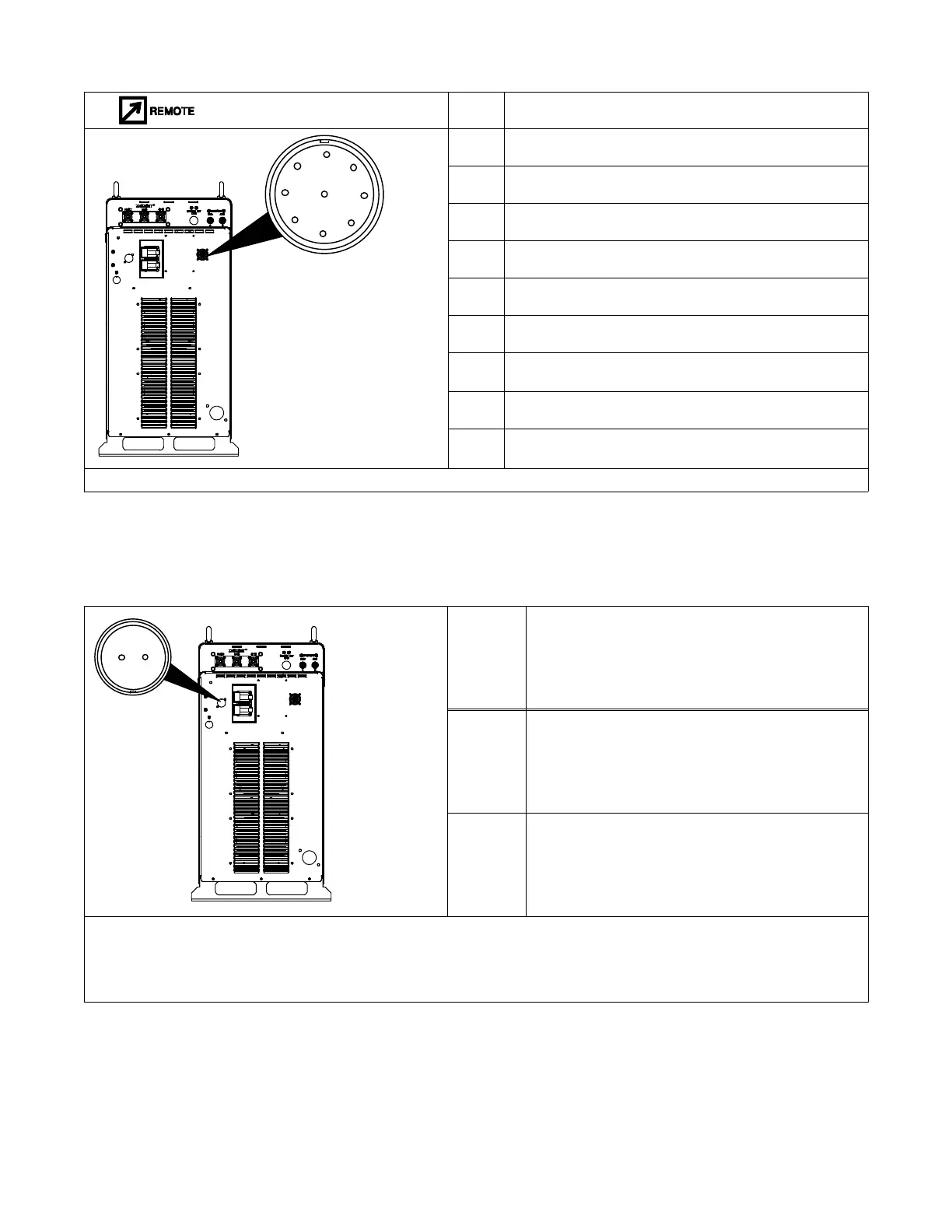

8-7. Network Wire Feeder Receptacle Functions
9
Pin* Pin Information
Ref. 245 741-A
A
B
I
C
H
D
G
E
F
A Not used.
B Shield.
C Volt sense.
D Can low.
E Can high.
F +24 volts DC common.
G + 24 volts DC
H Motor voltage +40 volts DC common
I Motor voltage +40 volts DC
*The remaining pins are not used.
8-8. Optional E-Stop Receptacle Functions
B
A
Ref. 245 741-A
Socket Socket Information
A A short to socket B allows unit to weld.
B A short to socket A allows unit to weld.
The E-Stop option comes with a 2-pin amphenol receptacle, matching plug, and 30 ft (9 m) of high density molded cord to allow connecting the
welding power source into an E-Stop circuit. An integrator will need to supply a closure for the non E-Stop condition. When the E-Stop input
connection changes it state from closed to open, the welding power source goes into an E-Stop mode where all welding outputs shutdown
immediately. Once the input connection returns to a closed state, the unit will start a reset routine and be ready for operation when it completes
the reset routine.
