General
OM-244 814 Page 43

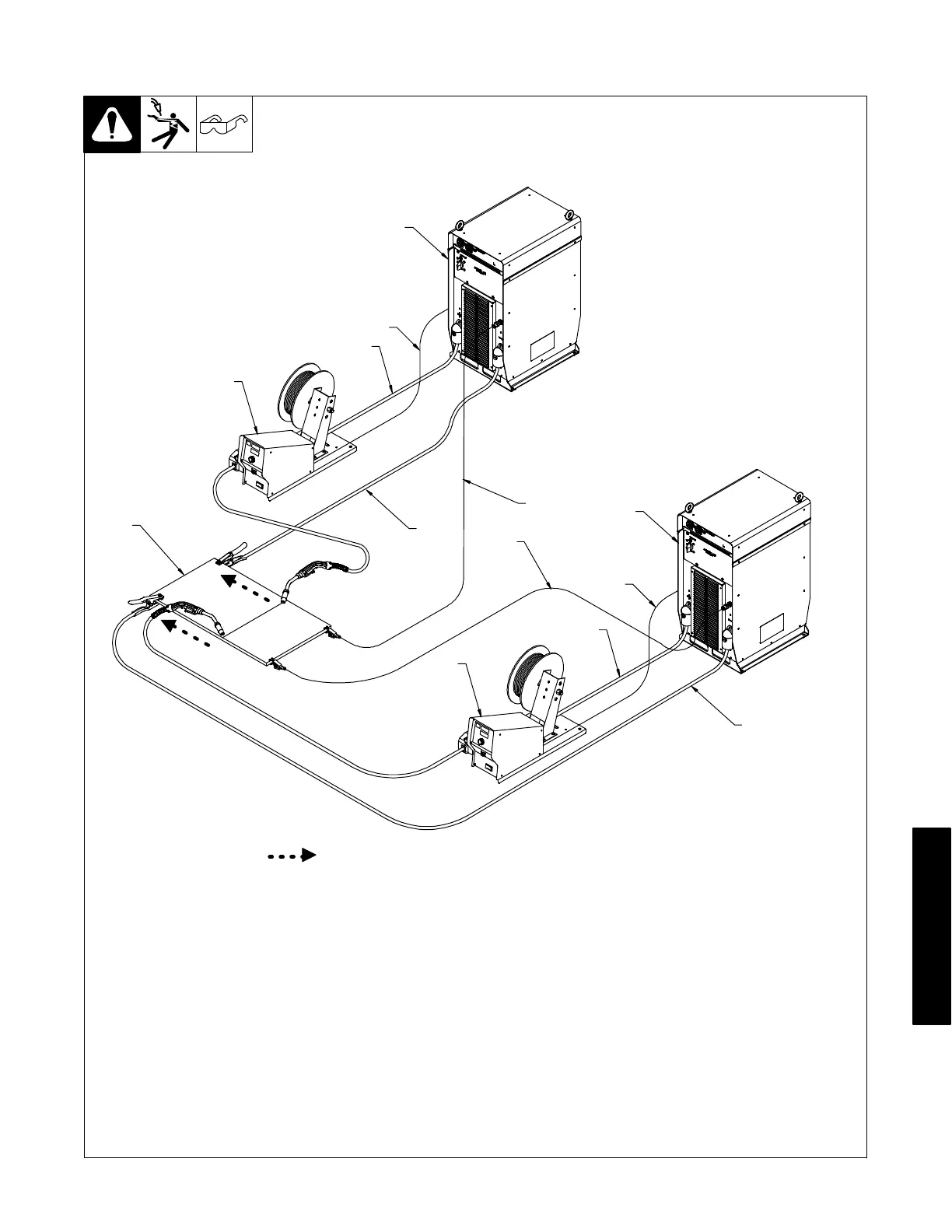

C. Best Setup
Ref. 245 751-A
1 Welding Power Source
2 Electrode Cable
3 Feeder Cable
4 Work Cable
5 Voltage Sensing Lead
6 Wire Feeder
7 Workpiece
This arrangement is the best setup for
proper voltage sensing at the workpiece.
Voltage feedback to the welding power
sources will more accurate and result in
reliable arc starts and better arc quality.
Current Flow Path
1
2
3
6
3
2
1
6
4
7
5
5
4
