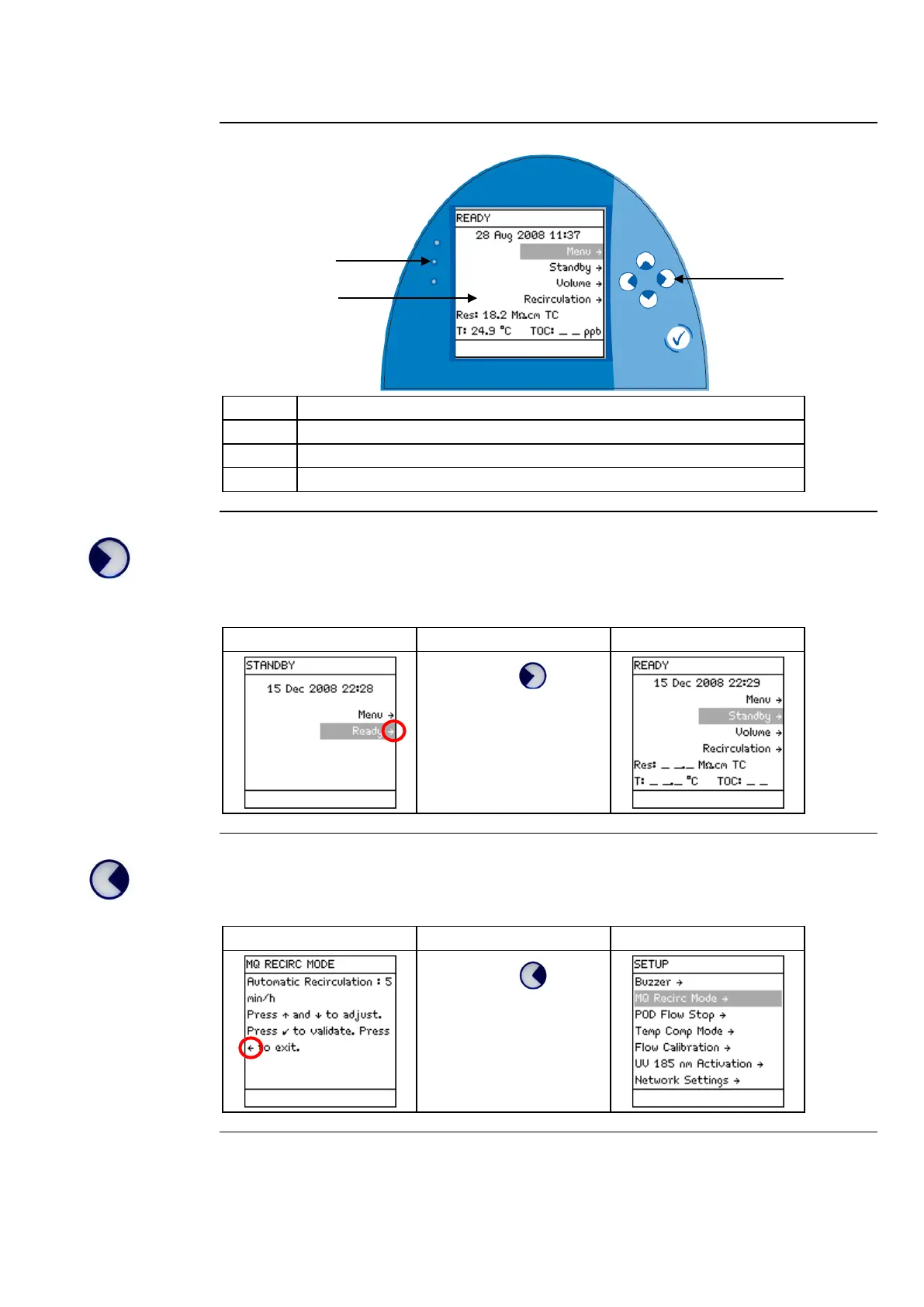

Details of the
Main Display
Item
Description
1
LED’s
2
Main LCD
3
Main Keypad
Right
The use of the Right Keypad button is shown below. It is used to move to the next
screen.
In this example, the system is changed from STANDBY Mode to READY Mode.
Diagram 1
Action
Diagram 2
Press .
Left
The use of the Left Keypad button is shown below. It is used to move to the former
screen.
Diagram 1
Action
Diagram 2
Press .
