8. Press the START key again to adopt the
flashing limit value as the current setting. The
display then returns to the catalog of func-
tions and parameters item “FILTER (4.2)”.
If at this point either the MASTER or DATA
key is pressed instead of START, the dis-
play returns to the limit value selection list
(cf. point 5). An alternative limit value can be
selected.
9. If no further settings are to be made in the
catalog of functions and parameters, press
the START key. The standard display ele-
ments appear.
If further settings are necessary, navigate
to the appropriate point of the catalog of
functions and parameters using the ESC,
MASTER, DATA and MENU keys and carry
out the settings as required.

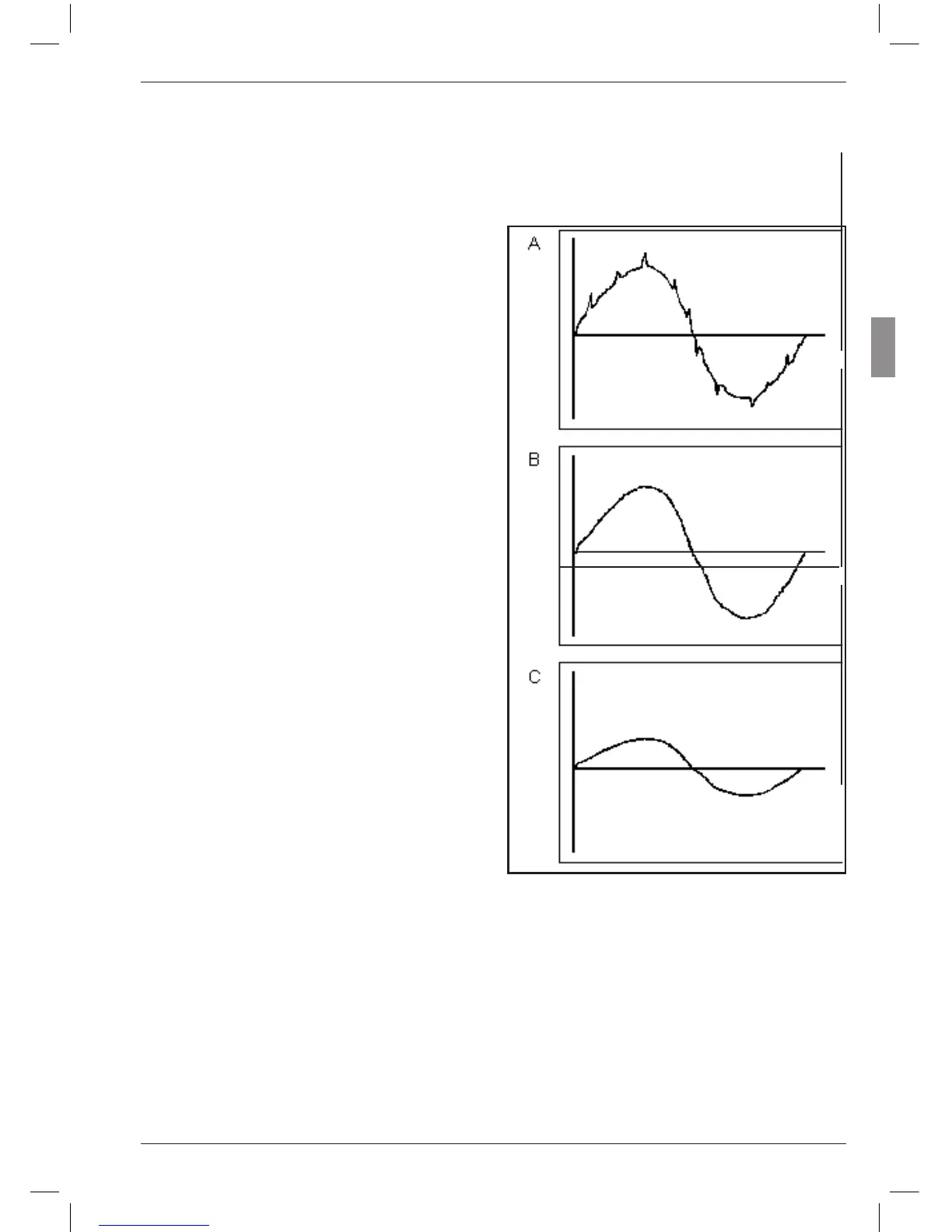

Fig. 5
Filter effect with various limit values
A High limit value
Interference (due to grooves or soiling) on
the measuring result
B Low limit value
Interference is largely avoided. The measur-
ing result is not influenced
C Too low a limit value
The measuring signal is corrupted by the er-
roneous setting
