PL-565 Accumass BW500 Page 13
Installation
Installation
Notes:
1. Installation shall only be performed by qualified personnel, and in accordance
with local governing regulations.
2. This product is susceptible to electrostatic shock. Follow proper grounding
procedures.

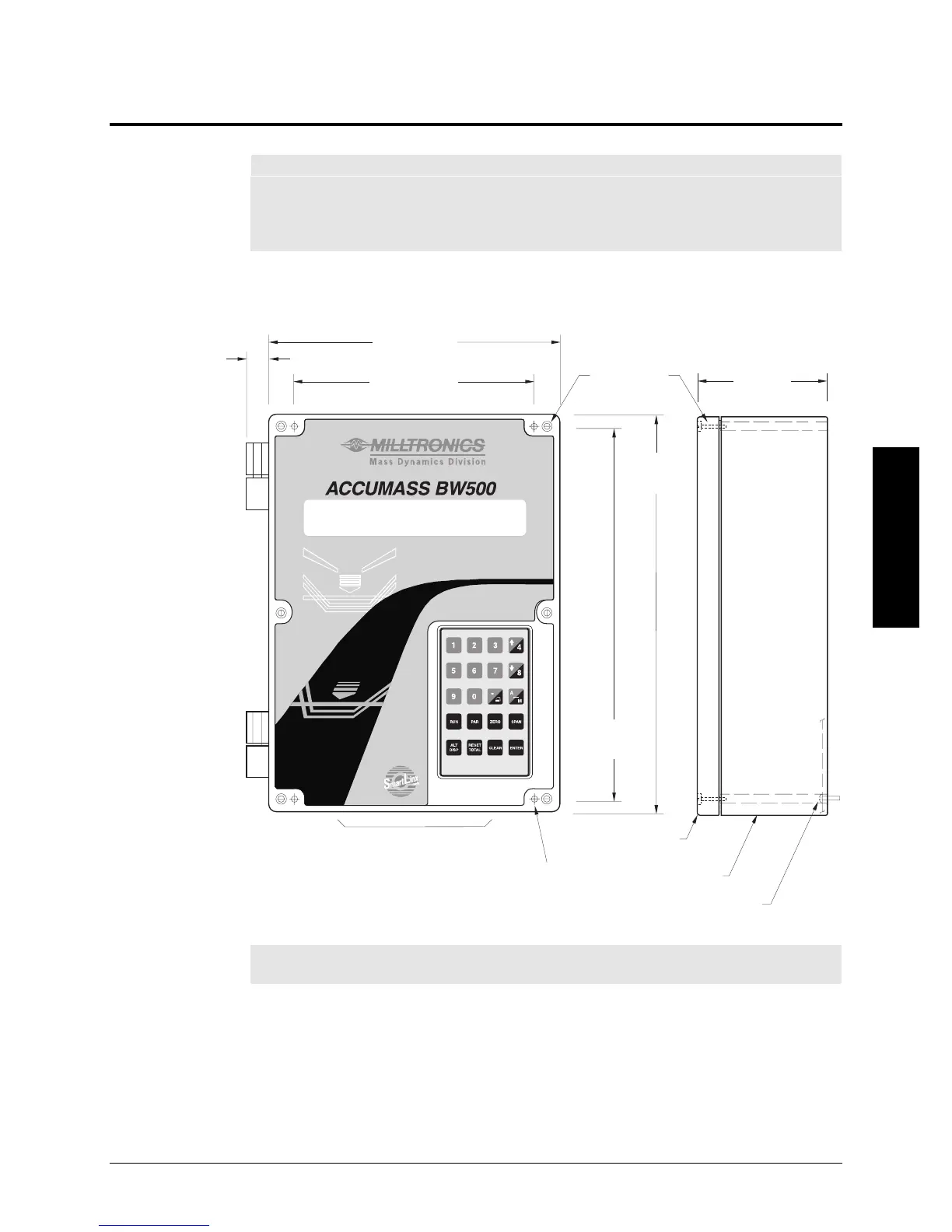

Dimensions
3. Non metallic enclosure does not provide grounding between connections.
Use grounding type bushings and jumpers.
Conduit entry area.
Recommend drilling the enclosure with
a hole saw and the use of suitable
cable glands to maintain ingress rating.
209 mm
(8.2”)
172 mm
(6.8”)
92 mm
(3.6”)
285 mm
(11.2”)
267 mm
(10.5”)
lid screws
(6 places)
16 mm
(0.6”)
lid
enclosure
customer
mounting screw
mounting hole
(4 places)
