Page 26 Accumass BW500 PL-565
Installation

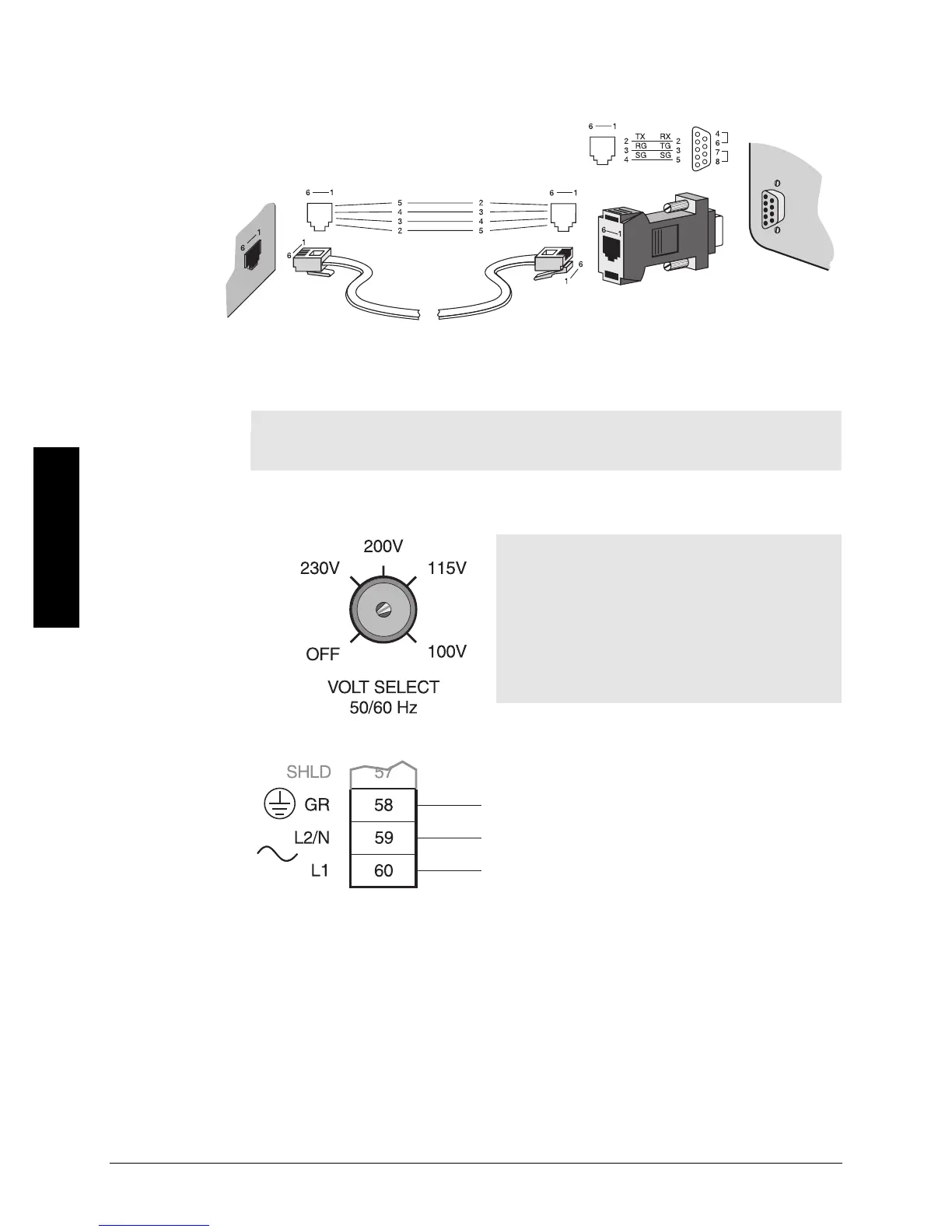

RS-232 Port 3
Note:
Jumper pins 4-6 and 7-8 when using hardware flow control. Otherwise, leave them
open.
Power Connections
Notes:
1. The equipment must be protected by a 15
A fuse or a circuit breaker in the building
installation.
2. A circuit breaker or switch in the building
installation, marked as the disconnect
switch, shall be in close proximity to the
equipment and within easy reach of the
operator.
100 / 115 / 200 / 230V
50 / 60 Hz
select voltage via switch
computer DB-9
(female)
Milltronics device
with RJ-11 jack
modular cable with
RJ-11 plugs
adapter RJ-11
DB-9
(male)
