Page 22 Accumass BW500 PL-565
Installation
Speed

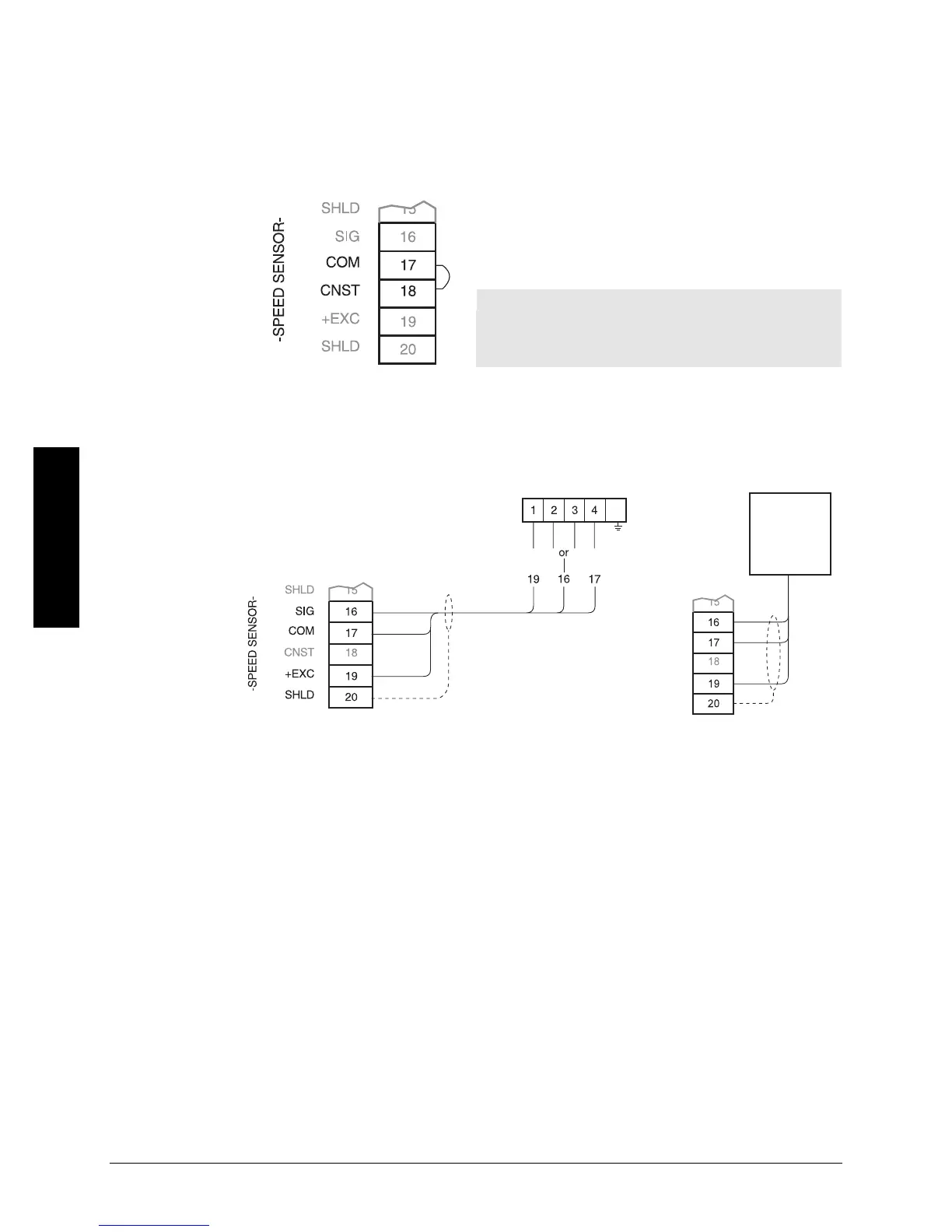

Constant Speed (No Sensor)
If a speed sensor is not used, a jumper or contact
closure must be connected across the BW500
terminals 17 / 18 when the conveyor is running. If a
speed sensor is used, insure that the jumper is
removed.
Note:
With contact closed or jumpered when the
conveyor is idle, the integrator will continue
totalizing.
Speed Sensor
MD Series RBSS or ENCODER
• Connect the BW500 terminal 16 to speed sensor terminal:
`2' for clockwise speed sensor shaft rotation
`3' for counter-clockwise speed sensor shaft rotation.
Speed sensor shaft rotation is viewed from the front cover of the speed sensor
enclosure.
• Input device in the form of open collector transistor or dry contact across BW500
terminals 16 / 17 will also serve as a suitable speed signal.
• If a speed sensor other than the models shown is supplied, consult with Milltronics for
details
wht
blk
red
