Milltronics ACCUMASS BW500 - Scale - Two Load Cell

PL-565 Accumass BW500 Page 19
Installation

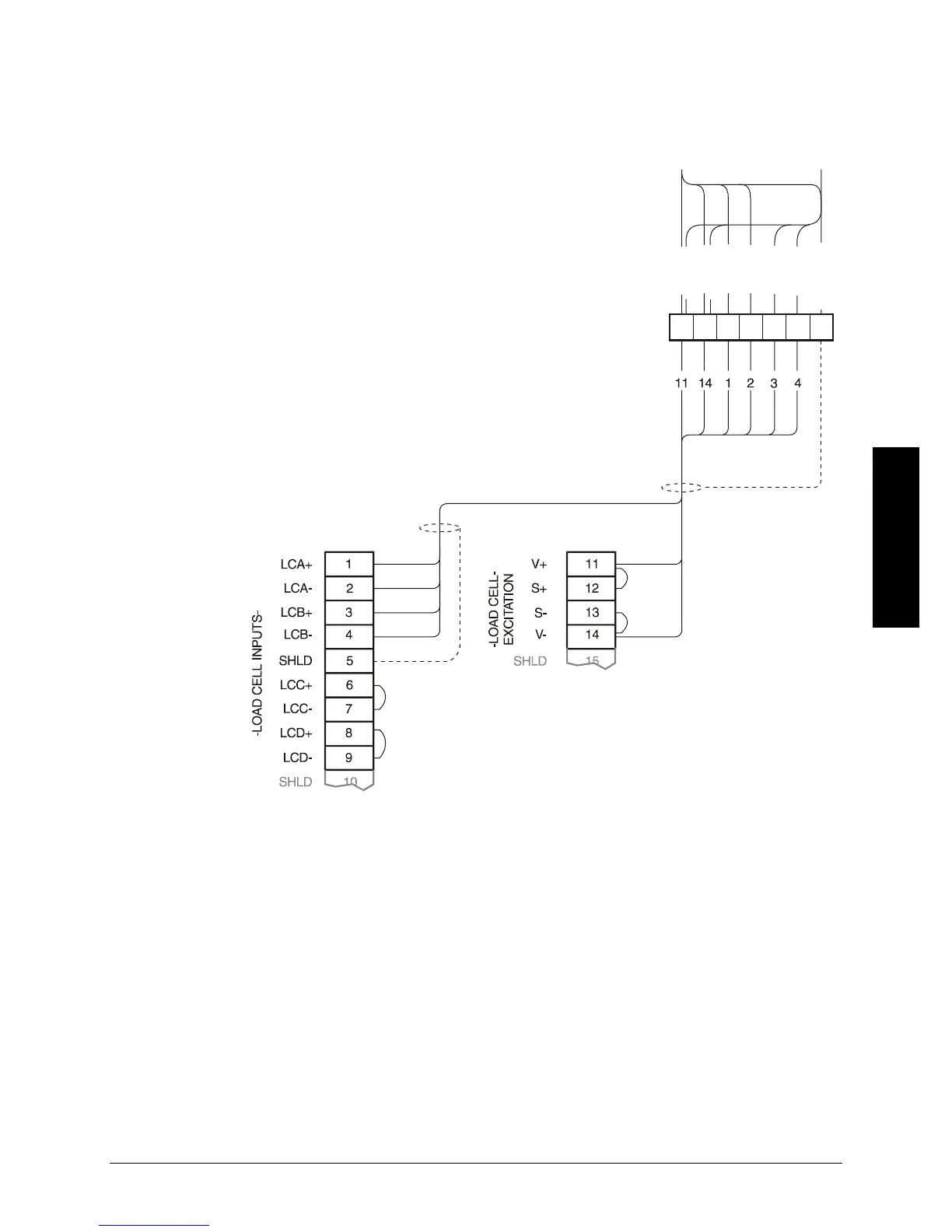

Scale – Two Load Cell
*Where separation between the BW500 and belt scale exceeds 150 m (500 ft) ), or legal for trade
certification:
• remove the jumpers BW500 terminal 11/12 and 13/14
• run additional conductors from :
BW500 terminal 12 to scale `red'
BW500 terminal 13 to scale `blk'
• If load cell wiring colours vary from those shown, or if extra wires are provided,
consult Milltronics.
customer
junction box
*
Milltronics
Belt Scale
load cell
A
load cell
B
r
e
d
b
l
k
g
r
n
w
h
t
s
h
l
d
g
r
n
w
h
t
