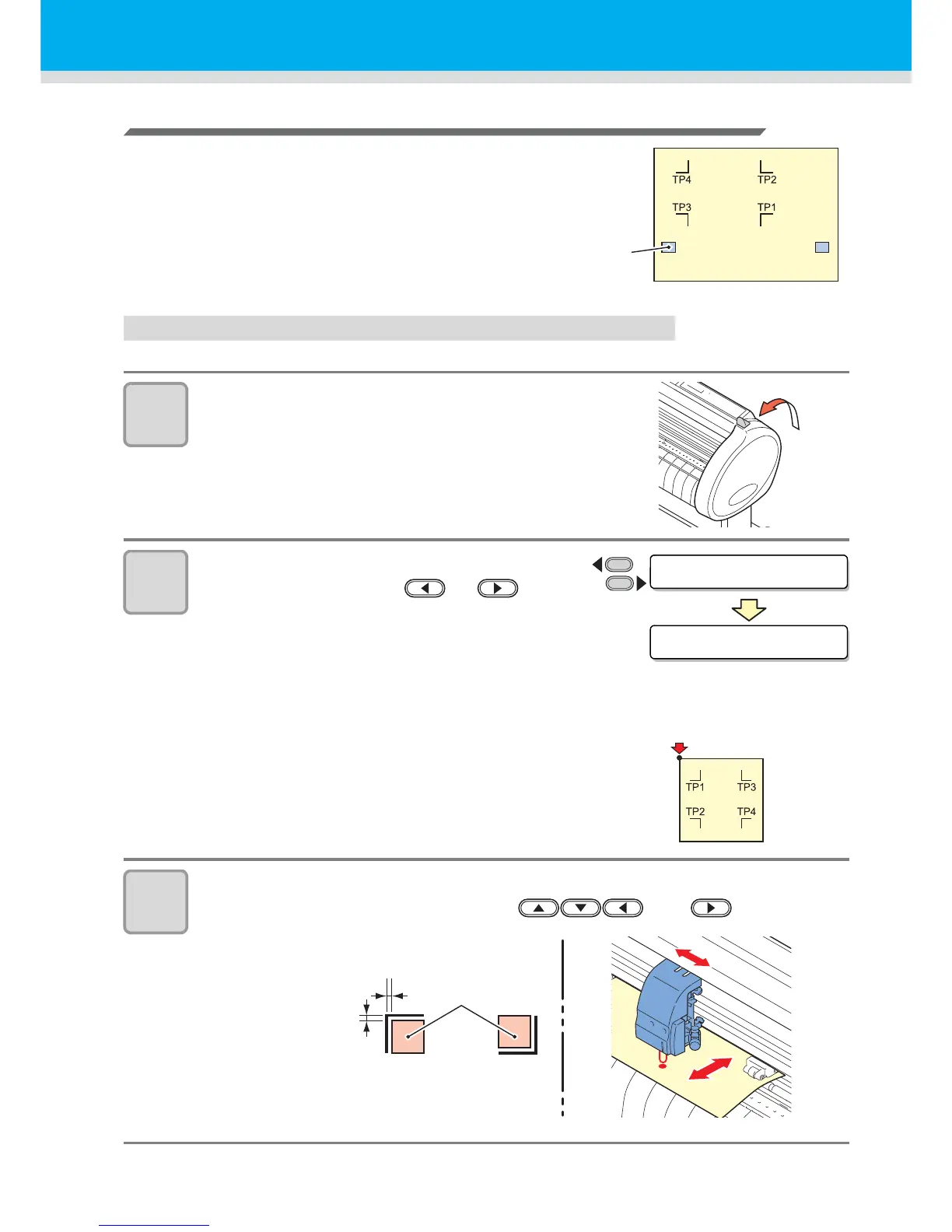

Cut Out Data with Registration Mark
Semi-automatic detection of registration marks
When TP1 cannot be located at the position where it can be
detected full-automatically or when no registration mark can
be detected full-automatically, perform registration mark
detection semiautomatically.
Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”)
1
Load the sheet and lower the clamp lever.
• Then the pinch rollers will retain the sheet.
2
Perform the sheet detection by
pressing the jog key or .
(Set the sheet in the rear.)
• Once the sheet is detected, the display
indicates that the plotter is waiting for
registration mark detection operation.
• When the sheet is set in the front, the
positions of the TP1 to TP4 are viewed
inverted as shown at right.
3
Move the Light Pointer into the area shown below by pressing the
appropriate ones of the jog keys and .
