Mindray DC-70 Pro User Manual

Structure and Assembly/Disassembly 9-5
9.3.2 Probe Board Assembly
The disassembly tool: cross-headed screwdriver (M3, M4)

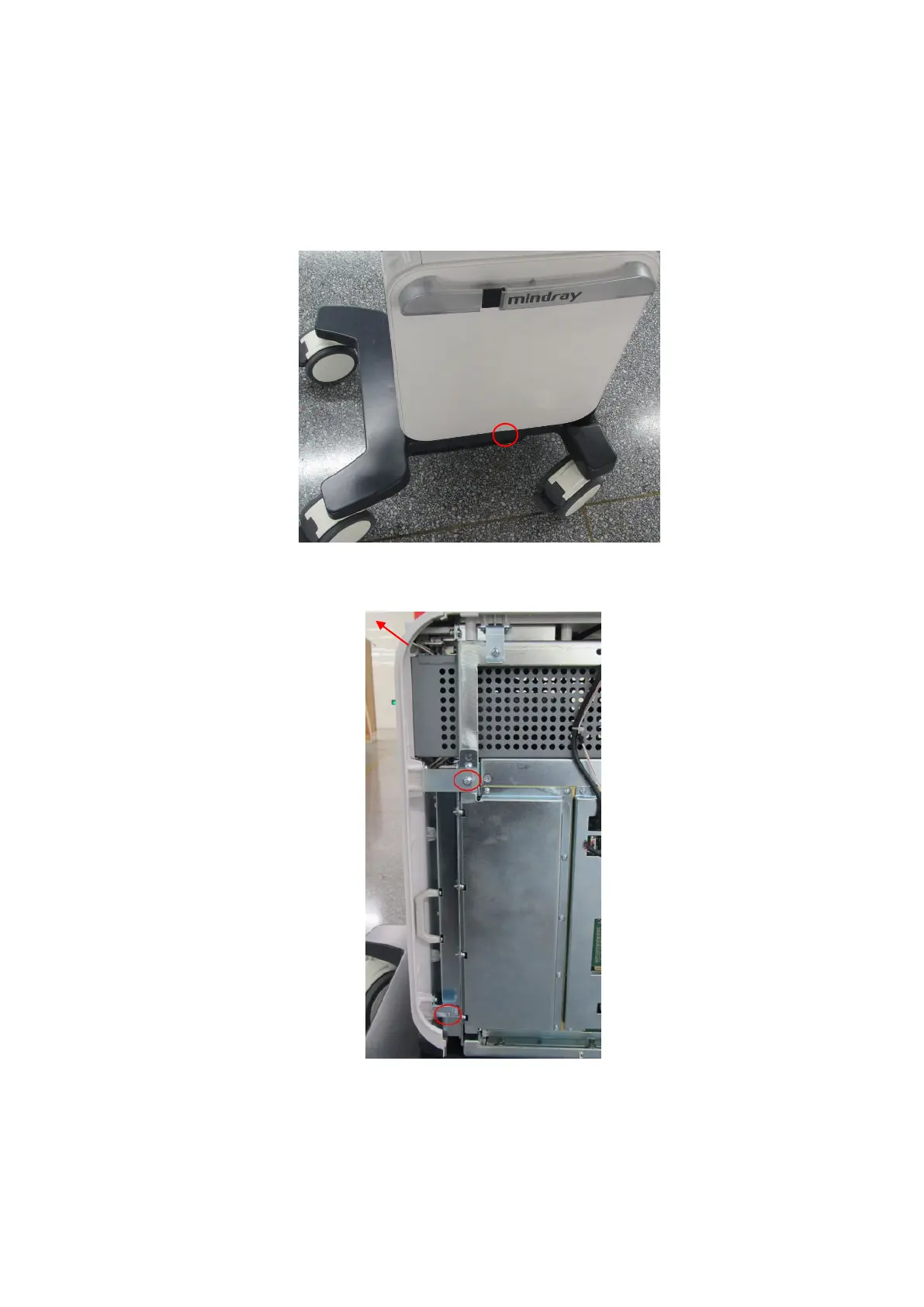

1. Unscrew the M4 X 8 screw on middle part of left side panel’s lower position. Lift the left side
panel upwards to remove it.
2. Follow the procedures of step 1 to remove right side panel.
3. Unscrew two M4 X 8 screws fixing the front cover, and remove the front cover upwards.
4. Unscrew twelve M4 X 8 screws. Hold two plastic handles on the probe board. Pull the probe
board assembly out.

Mindray DC-70 Pro Specifications

General

Touch Screen	Yes
Touch Panel	Yes
Transducer Ports	4
Battery Backup	Yes
3D/4D Imaging	Yes
Operating System	Windows-based
Power Supply	100-240V AC, 50/60 Hz
Storage	500GB HDD
Connectivity	USB, HDMI
Applications	Cardiology, Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Ports	USB, Ethernet, HDMI
Display Size	19 inch
