Mindray DC-70 Pro User Manual

9-34 Structure and Assembly/Disassembly

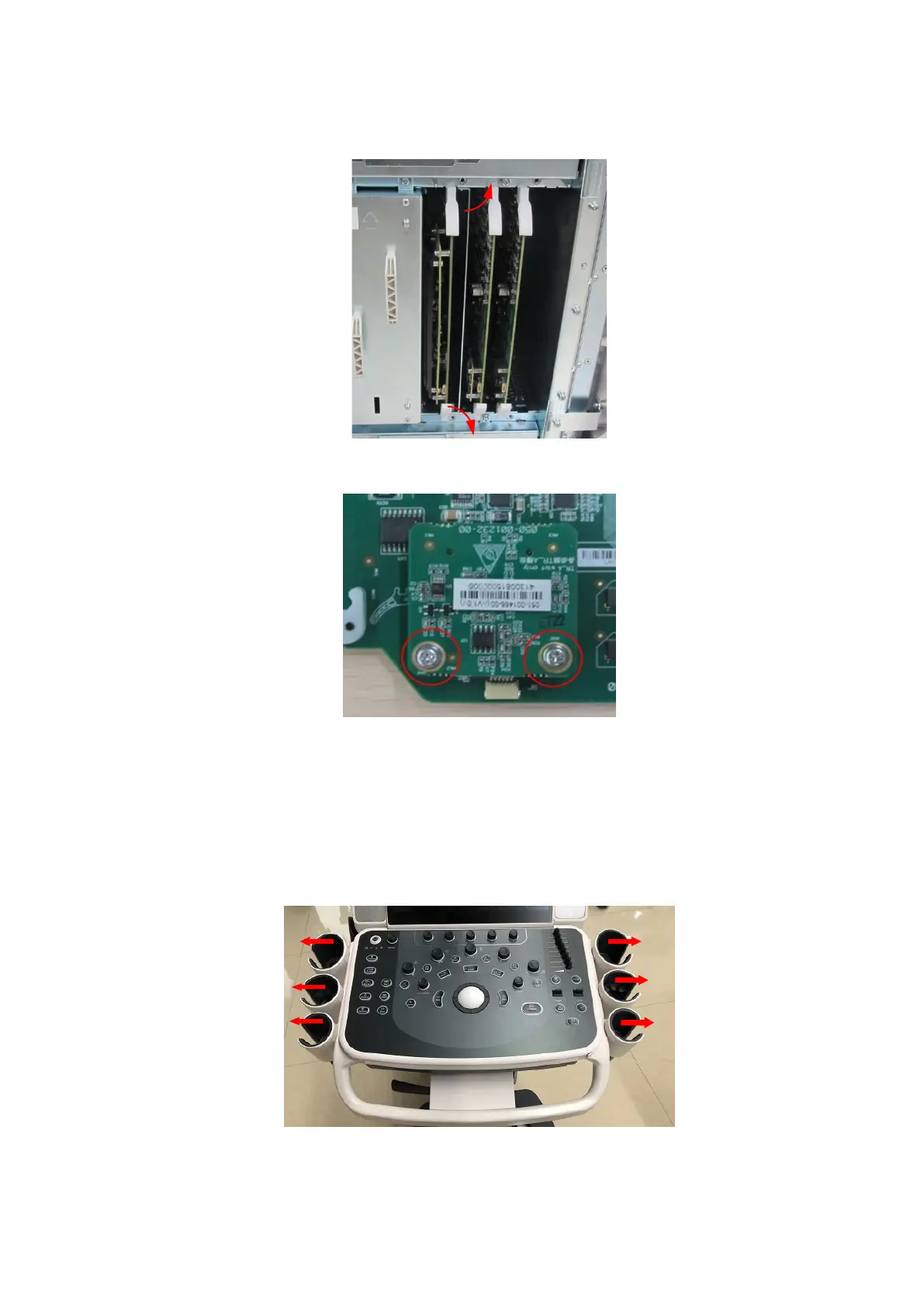

3. And remove TR board as shown in the figure below.
4. Unscrew two M3 X 8 screws to remove the material package of CW assembly.
9.3.21 Support Arm Assembly of the Control Panel
The disassembly tool: cross-headed screwdriver (M3, M4), sharp nose pliers, flat nose pliers.
1. Remove the holders on both sides. Press the clips inwards. Lift the holders to both sides to
remove them.
