9-44 Structure and Assembly/Disassembly
9.3.27 Power Input Assembly
1. Follow steps 1-6 in Chapter 9.3.8 to remove the electronic assembly.

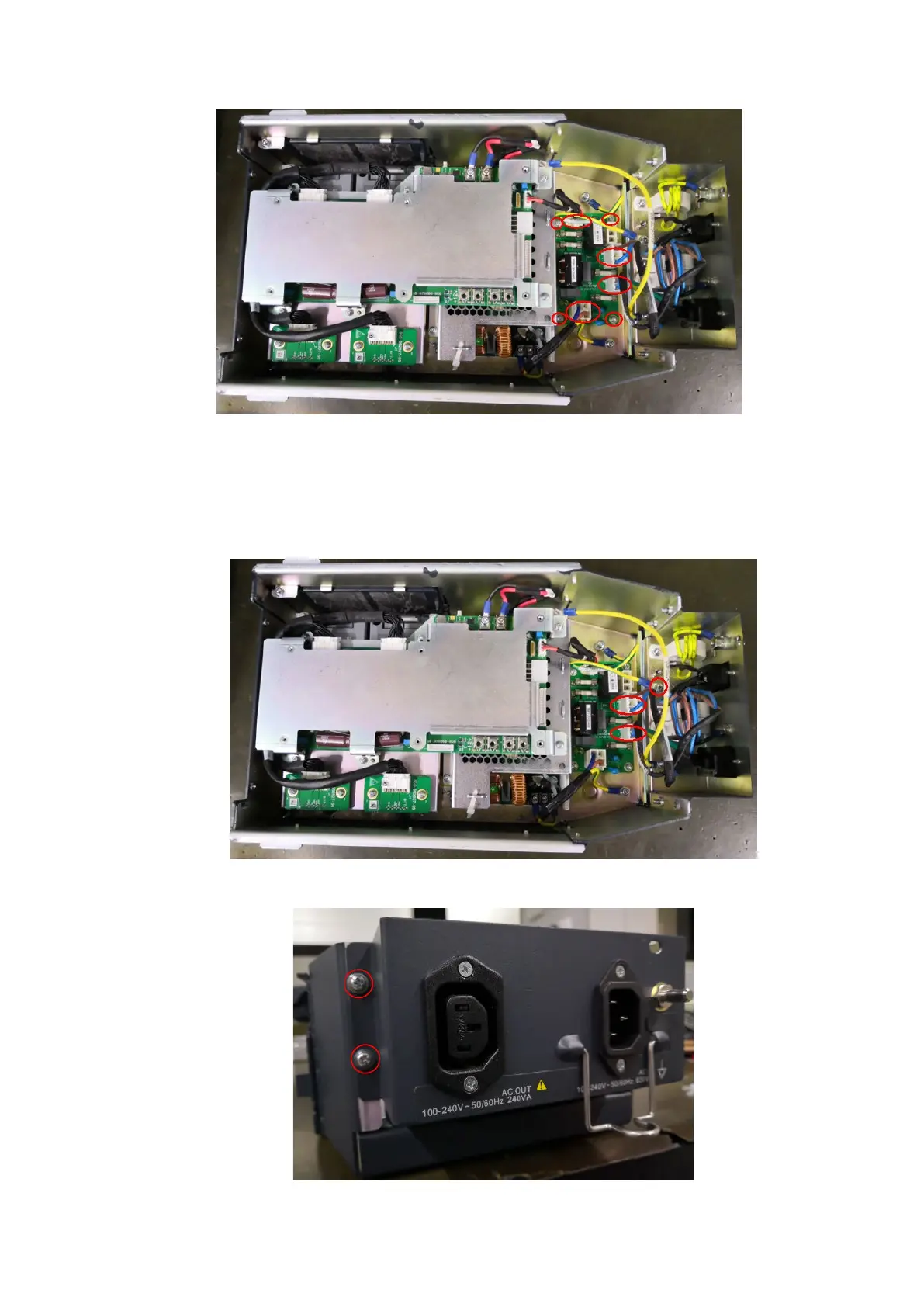

2. Unscrew the M4 X 8 screw and disconnect the two connecting plugs as shown in the figure
below.
3. Unscrew four M4 X 8 screws (two of the screws are in the opposite side, and not shown in the
figure).
