9-24 Structure and Assembly/Disassembly

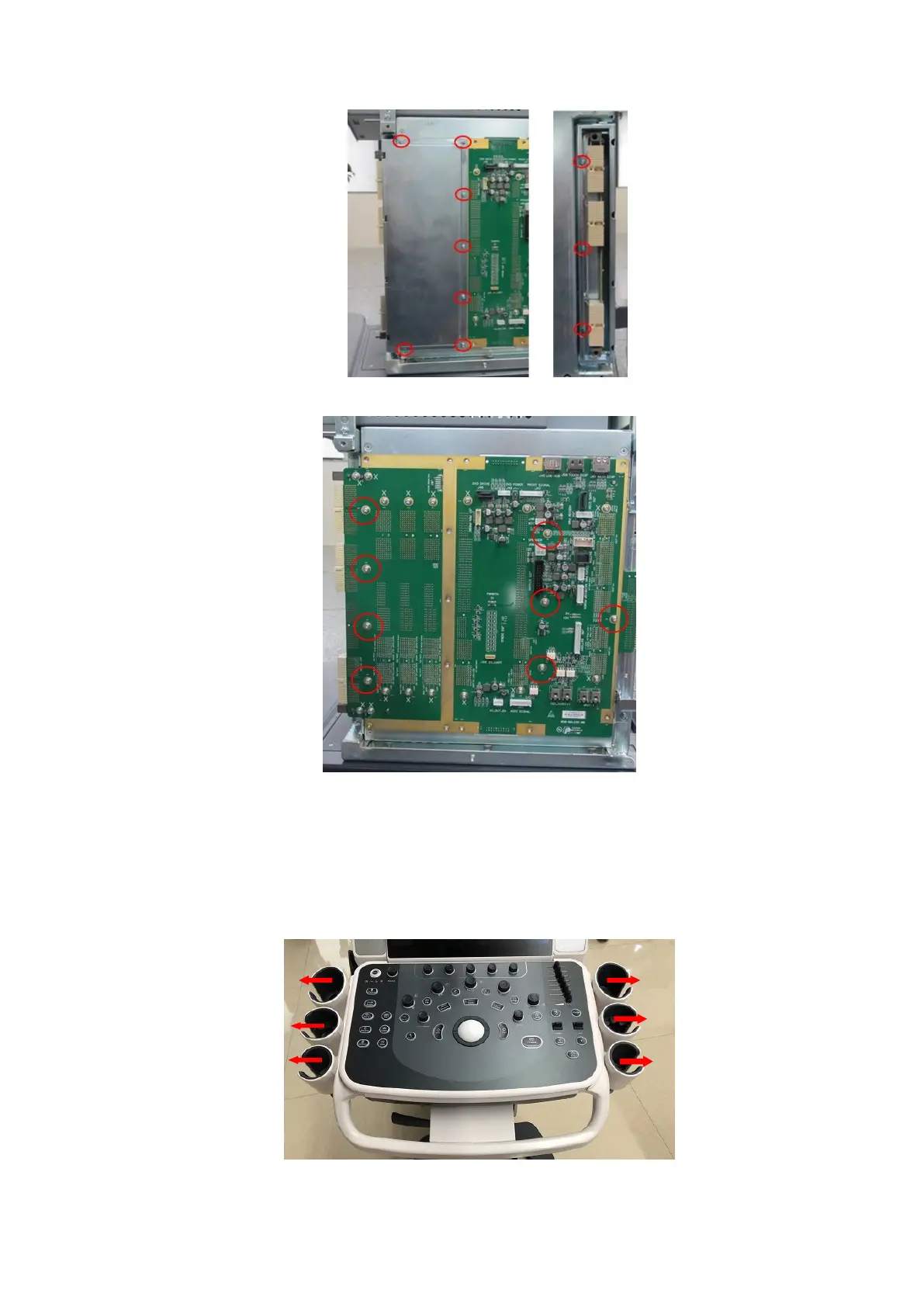

8. Unscrew eight M3 X 8 screws to pull the mother board out.
9.3.15 Control Panel Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), diagonal cutting pliers, anti-electrostatic
glove.
1. Remove the holders on both sides. Press the clips inwards. Lift the holders to both sides to
remove them.
