Structure and Assembly/Disassembly 9-25

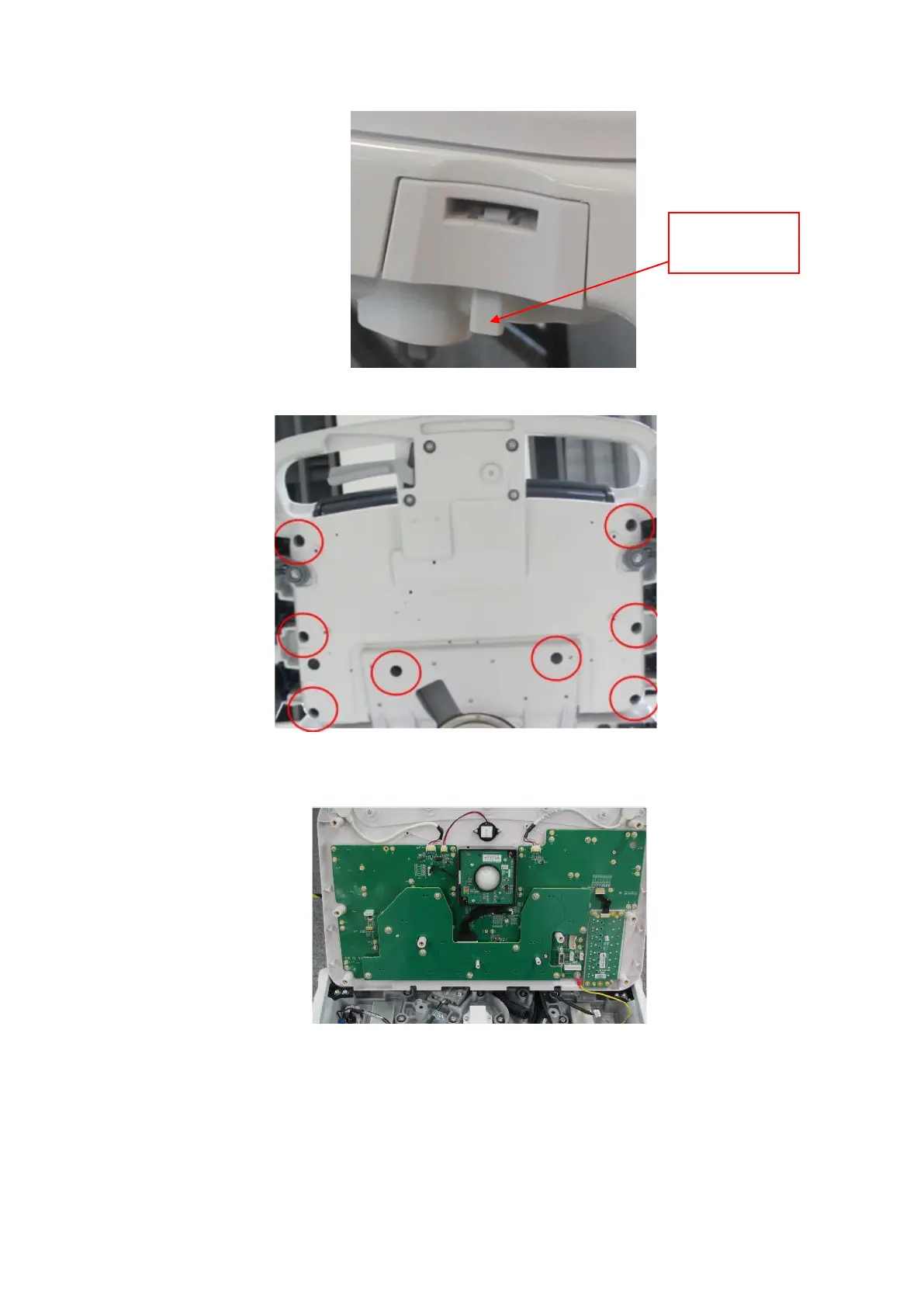

2. Unscrew eight M4 X 12 screws on the control panel assembly.
3. Lift the upper cover up around the margin. Disconnect all plugs on the upper cover. The control
panel and the main unit fall apart then.
4. Unscrew the M3 X 8 screw on the cast-aluminum base to remove the control panel assembly.
Press the clips
inwards
