Mindray DC-70 Pro User Manual

Structure and Assembly/Disassembly 9-7

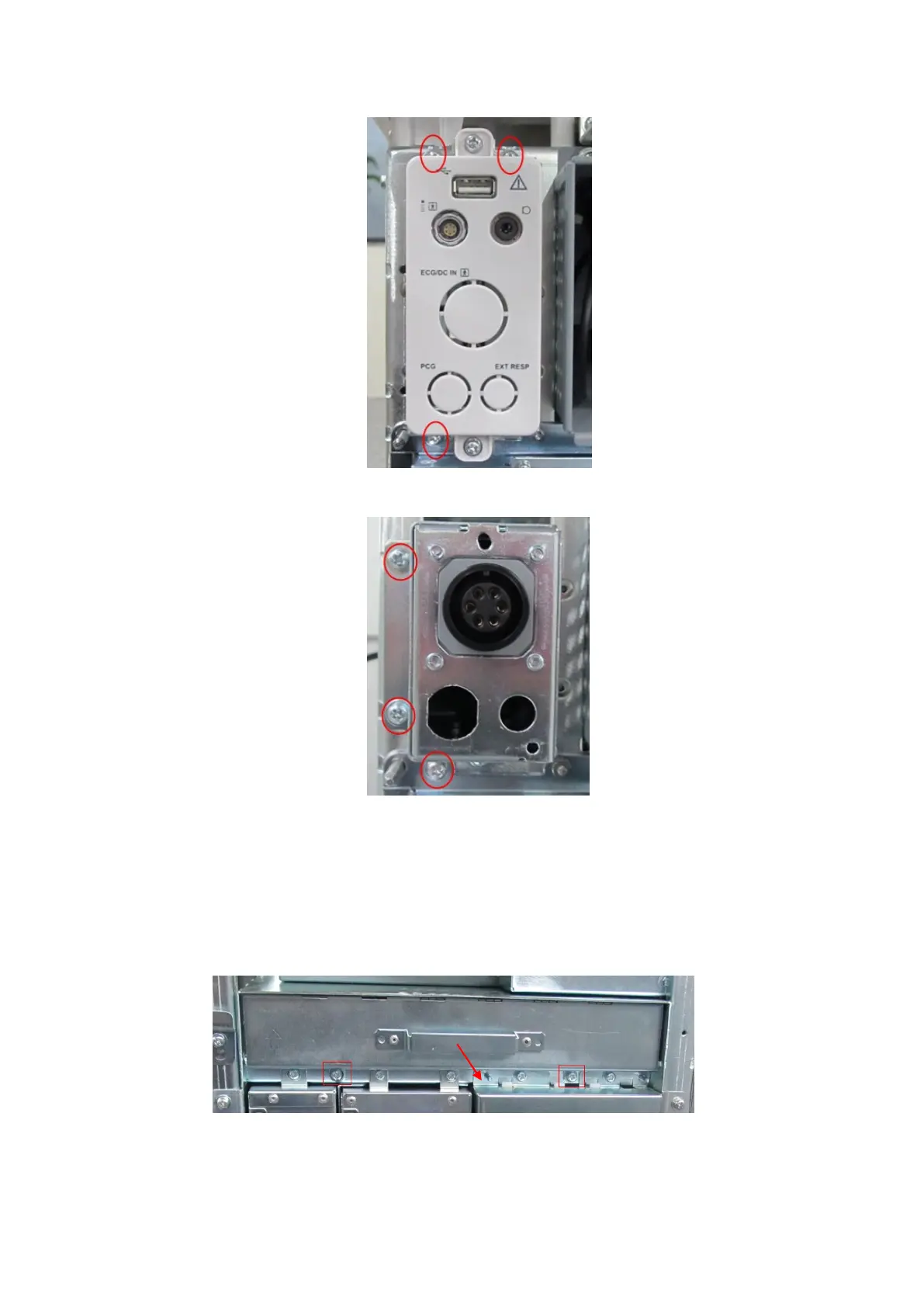

4. Unscrew three M4 X 8 screws fixing ECG assembly, and pull ECG assembly out.
9.3.4 Outlet Fan
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew two M4 X 8 screws fixing the frame of the fan. Hold the metal handle to pull the fan
assembly out.
3. Unscrew 12 screws fixing the fan.
