Mindray DC-70 Pro User Manual

Structure and Assembly/Disassembly 9-31

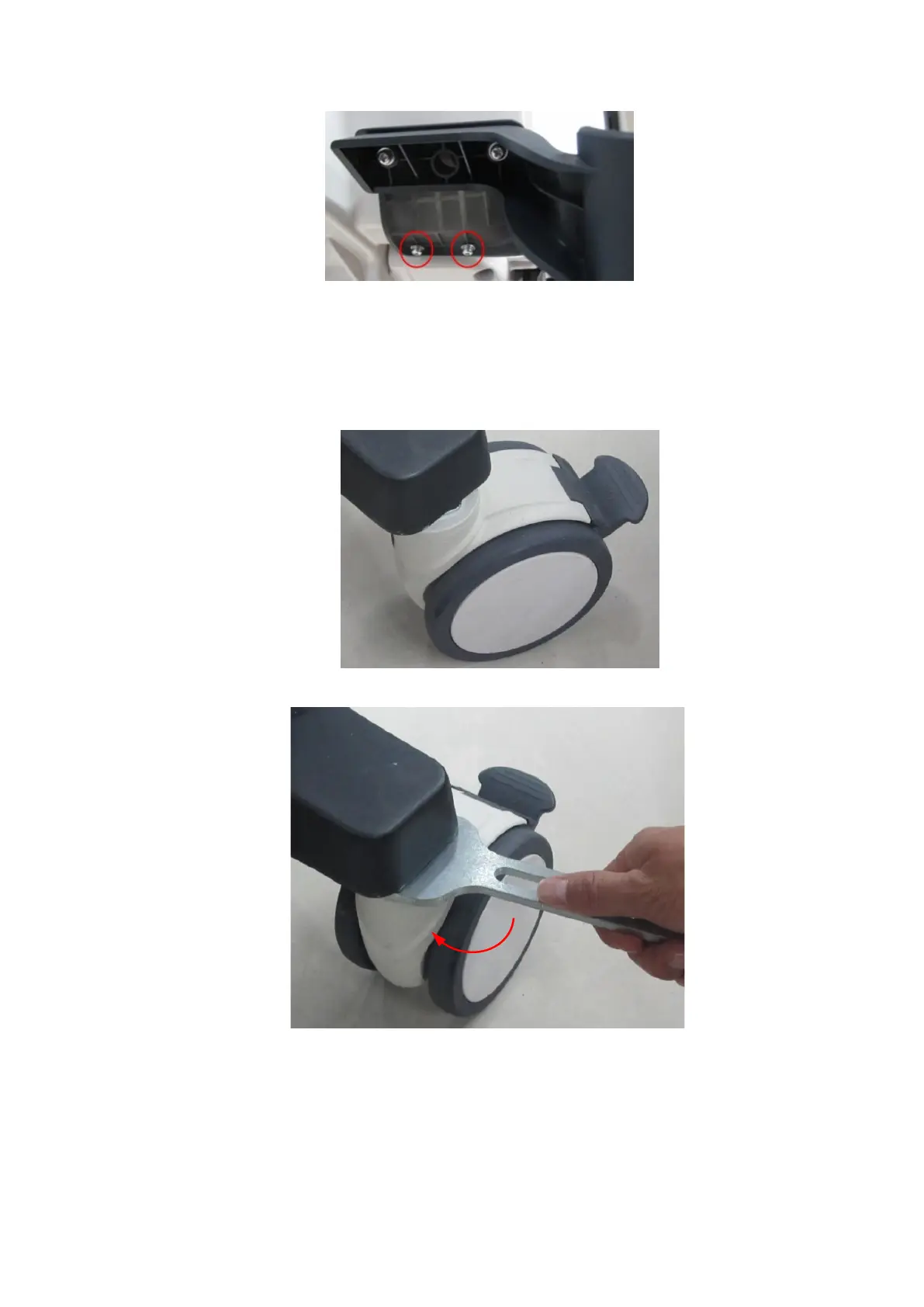

9.3.18 Caster
The disassembly tool: open-ended spanner.
1. Lock four casters of the device (step the caster “ON” downwards). Incline the device for 30
degrees.
2. Use the spanner to lock the stud and turn the spanner clockwise to remove the caster.
9.3.19 4D Module Package
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.

Mindray DC-70 Pro Specifications

General

Touch Screen	Yes
Touch Panel	Yes
Transducer Ports	4
Battery Backup	Yes
3D/4D Imaging	Yes
Operating System	Windows-based
Power Supply	100-240V AC, 50/60 Hz
Storage	500GB HDD
Connectivity	USB, HDMI
Applications	Cardiology, Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Ports	USB, Ethernet, HDMI
Display Size	19 inch
