Mindray DC-70 Pro User Manual

9-14 Structure and Assembly/Disassembly
4. Unscrew one M4 X 8 screw fixing the grounding terminal. Unscrew one M4 X 10 inner hex fixing
bolt used to fix the electronic assembly on the base.

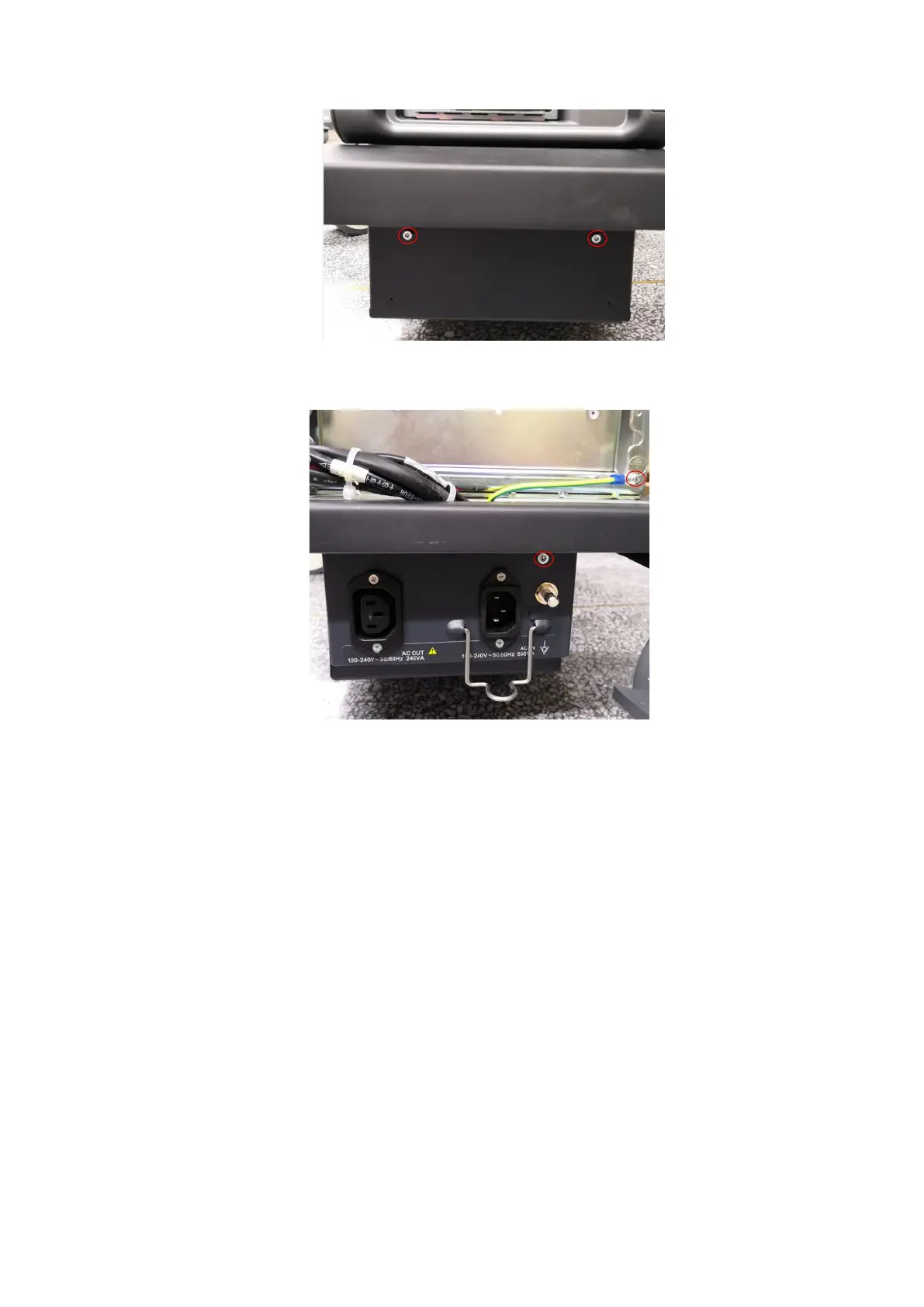

5. Pull out the electronic assembly to the location shown in the following figure (do not pull out it
entirely), cut off the three cable ties, remove the three connecting plugs, and then remove the
five M4 X 8 combination screws to disconnect the cables from the electronic assembly.

Mindray DC-70 Pro Specifications

General

Touch Screen	Yes
Touch Panel	Yes
Transducer Ports	4
Battery Backup	Yes
3D/4D Imaging	Yes
Operating System	Windows-based
Power Supply	100-240V AC, 50/60 Hz
Storage	500GB HDD
Connectivity	USB, HDMI
Applications	Cardiology, Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Ports	USB, Ethernet, HDMI
Display Size	19 inch
