9-18 Structure and Assembly/Disassembly

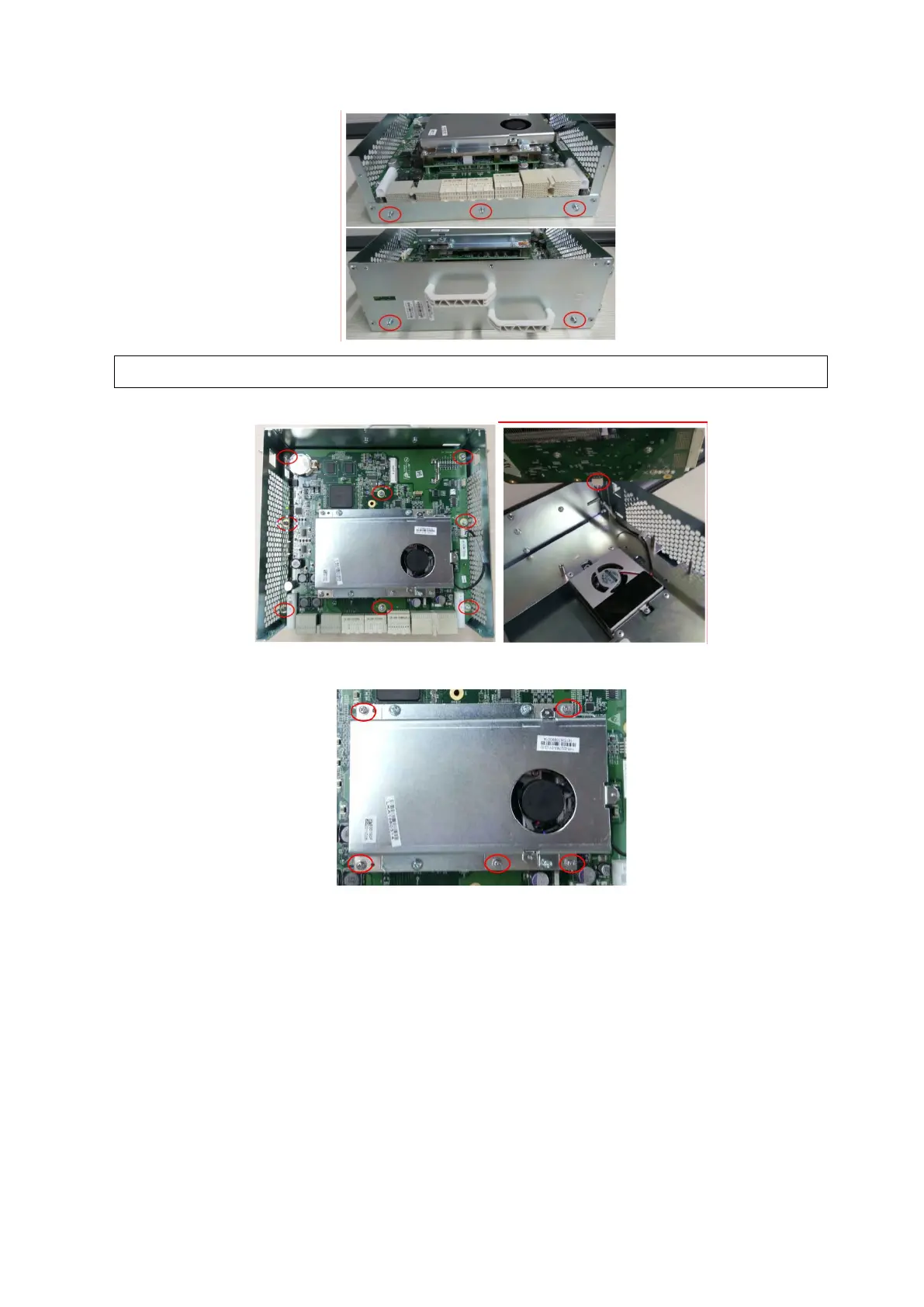

5. Unscrew eight M3 X 8 screws on metal bracket to remove digital board.
6. Unscrew five M2.5 X 20 screws on digital board to remove PC module assembly.
7. Unscrew two M3 X 6 screws on GPU to remove GPU module assembly.
NOTE:
Take notice of bolts’ place on two ends when installing.
