Mindray DC-70 Pro User Manual

9-36 Structure and Assembly/Disassembly

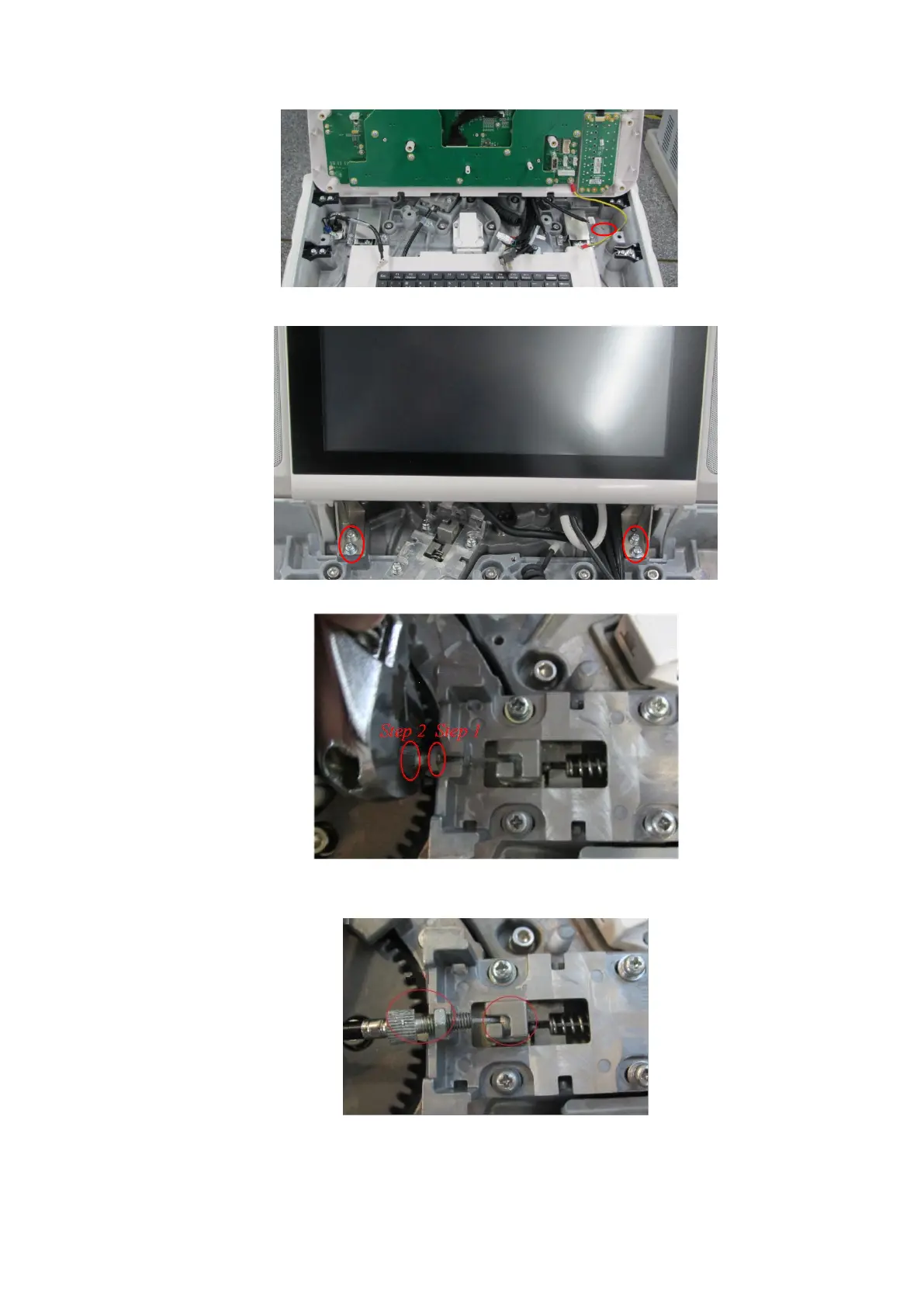

5. Unscrew four M4 X 12 combination screws from the touch screen assembly to remove it.
1. Unfasten the screw, and then remove the bolt. Take the guide cable out of the slot.
2. Disassemble the two parts as shown in the following figure. Take the cylinder-shaped part out of
the dragline. The dragline and the arm fall apart then.
3. Unscrew four M4 X 12 screws around the loudspeaker.
1. Separate the column
2. Take out the column
