Mindray DC-70 Pro User Manual

Optional Installation/Assembly 10-7

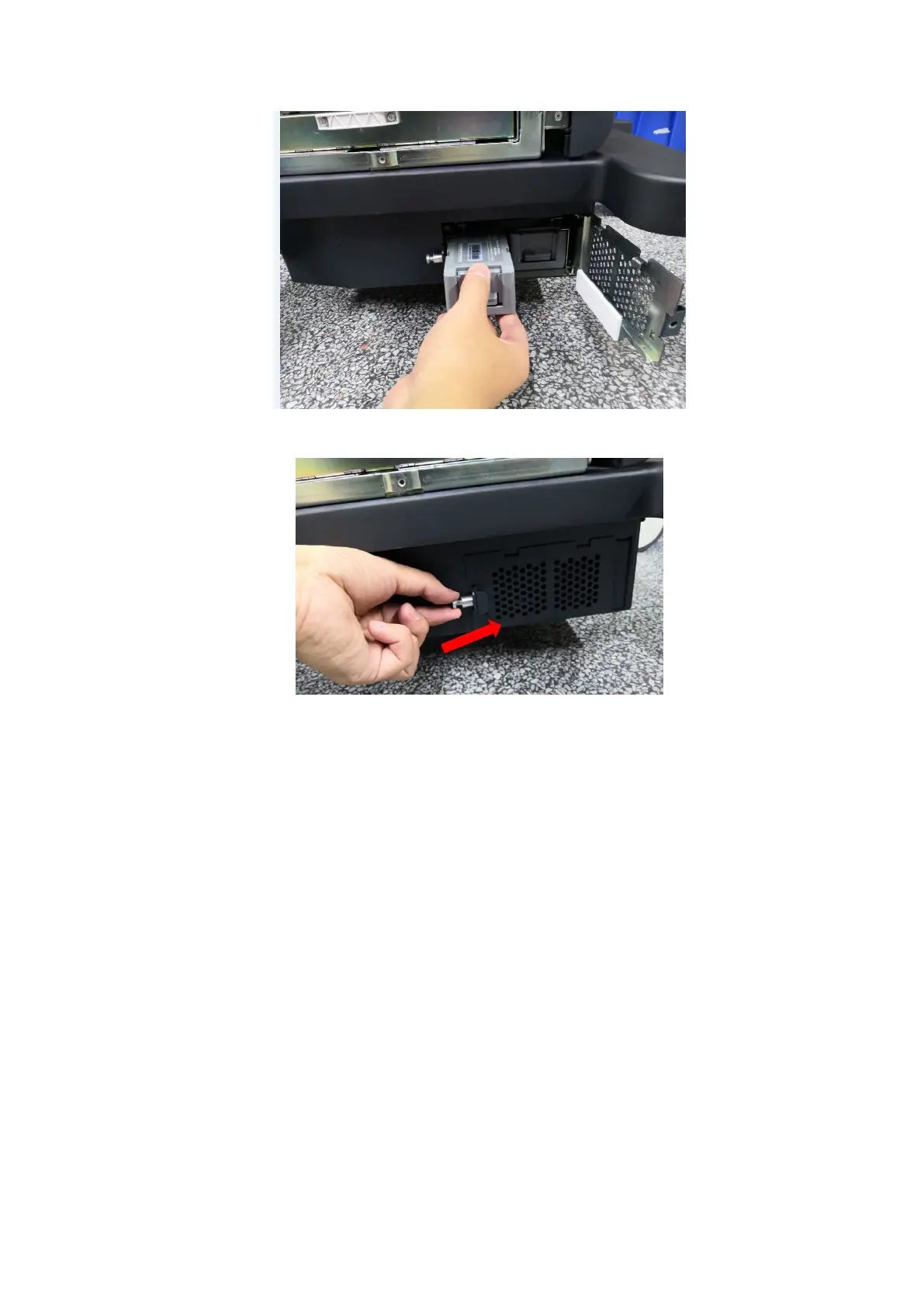

3. Close the electronic assembly door. Align the axis of the spring plunger with the door opening,
and push the spring plunger in the direction of the arrow to lock the door.
10.2.3 CW Board
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove the left side panel.
2. Moreover, remove TR board.

Mindray DC-70 Pro Specifications

General

Touch Screen	Yes
Touch Panel	Yes
Transducer Ports	4
Battery Backup	Yes
3D/4D Imaging	Yes
Operating System	Windows-based
Power Supply	100-240V AC, 50/60 Hz
Storage	500GB HDD
Connectivity	USB, HDMI
Applications	Cardiology, Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Ports	USB, Ethernet, HDMI
Display Size	19 inch
