Mindray DC-70 Pro User Manual

10-10 Optional Installation/Assembly
7. The installation is completed after the right/left side panels and the rear cover are assembled.
10.2.5 4D Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove the left side panels (refer to chapter 9.3.2 step 1).
2. And remove engine board.

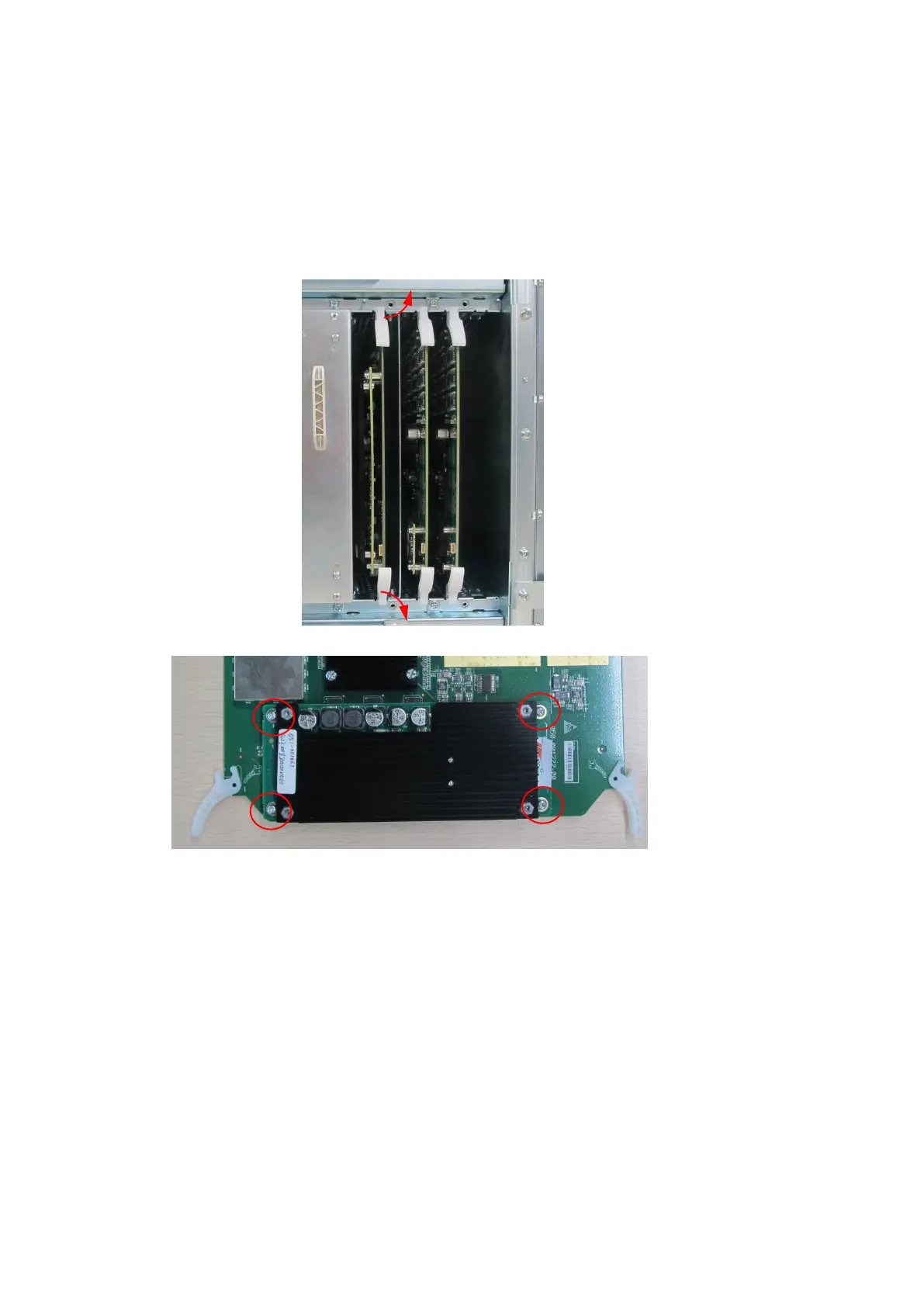

3. Fix 4D assembly to corresponding positions on engine board with four M3 X 8 screws.
4. Insert engine board into corresponding slot. Fix the plastic clips. Assemble the left side panel.
Then, the installation is completed.

Mindray DC-70 Pro Specifications

General

Touch Screen	Yes
Touch Panel	Yes
Transducer Ports	4
Battery Backup	Yes
3D/4D Imaging	Yes
Operating System	Windows-based
Power Supply	100-240V AC, 50/60 Hz
Storage	500GB HDD
Connectivity	USB, HDMI
Applications	Cardiology, Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Ports	USB, Ethernet, HDMI
Display Size	19 inch
