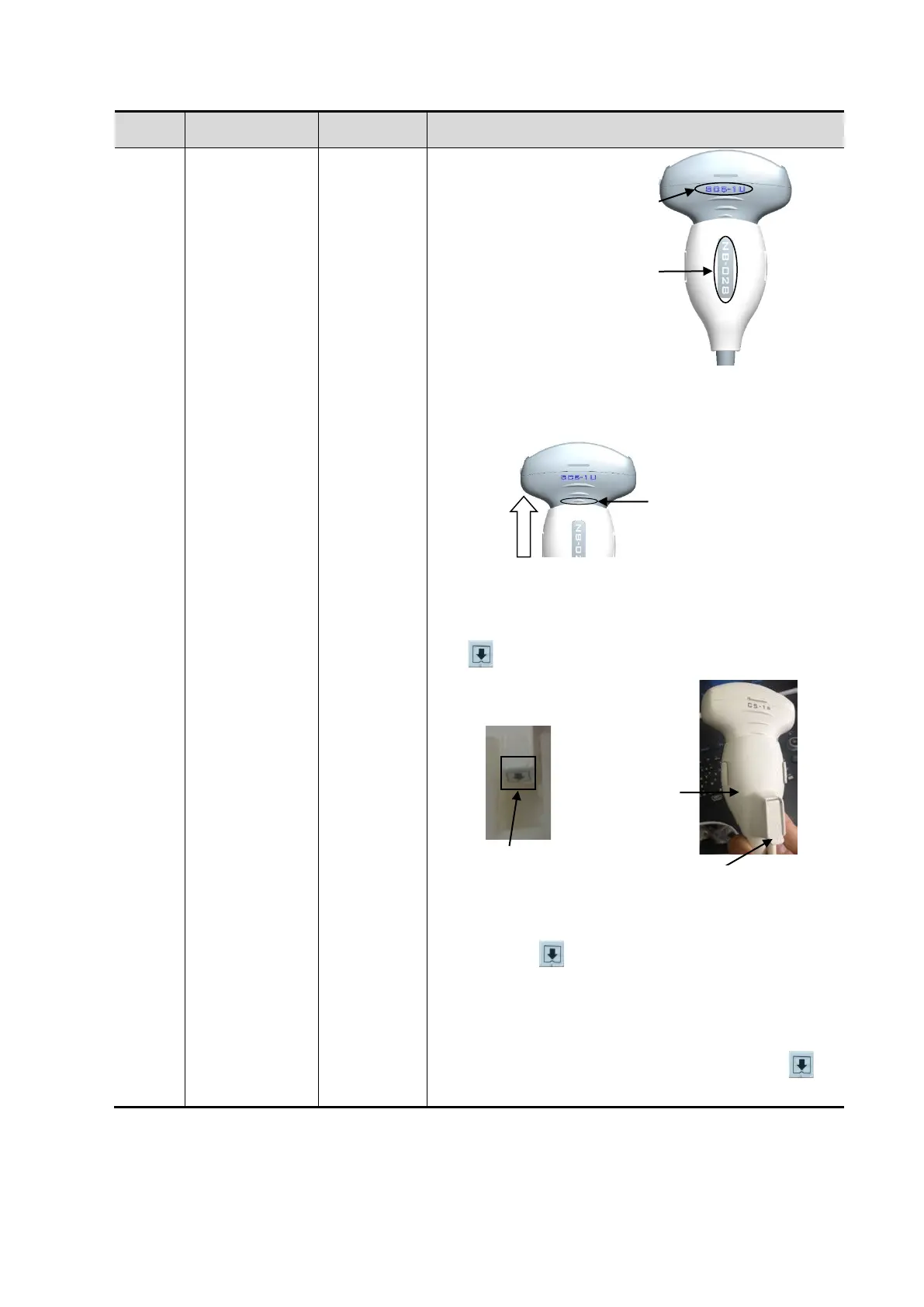

Mindray DC-70 Service Manual

9-50 Structure and Assembly/Disassembly
No. Device Name Port Description
 Push the navigation support fastened following
the arrow’s guide.
3. Positioning (probe) sensor: fix the positioning
(probe) sensor which is already plugged in
positioning (probe) sensor port to the cavity of the
positioning (probe) navigation support following
guide.
Note: if failed to plug the positioning (probe) sensor
following
guide, it may lead to non-correlation
of spatial positioning.
4. Motion (abdomen) sensor: fix the motion
(abdomen) sensor which is already plugged in
motion (abdomen) sensor port to the cavity of the
motion (abdomen) sensor support following
guide.
Positioning (probe) sensor
Positioning
(probe)
navigation
support
Face downward
Fastened here
Silk print on the
support
Silk print on the
probe

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
